Description
HP-STS BELT
(High-Performance Super -Torque Synchronous Belt)
As a result of recent demands for “space-saving” of industrial machinery, we have developed “HP-STS/HP-HTS/heavy duty type belts” utilizing our long-accumulated technology and experience.
Features
- High-torque power transmission

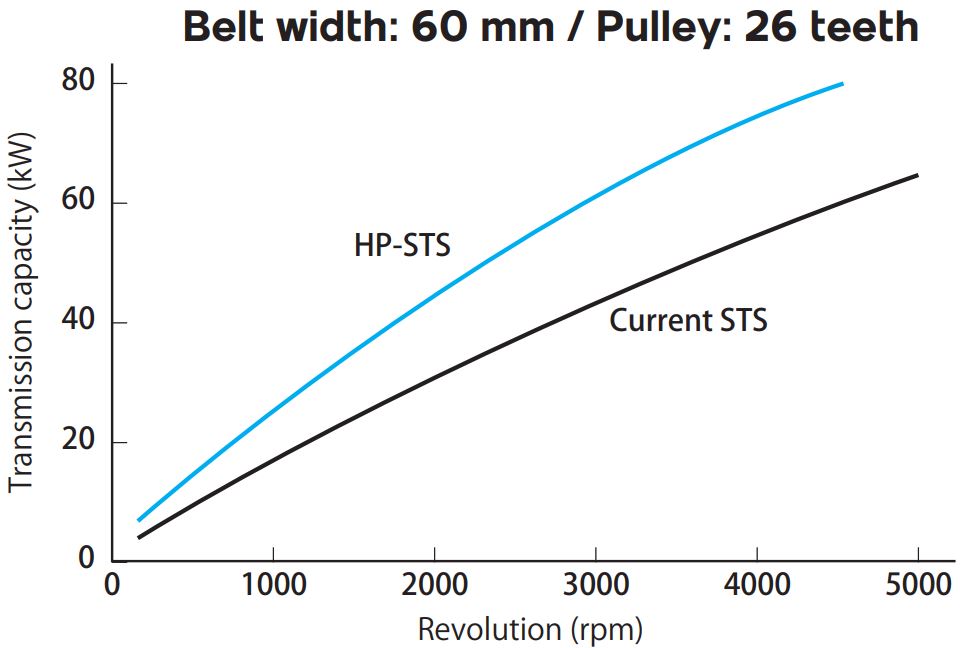

The HP-STS/HP-HTS belts provide higher torque and higher power transmission than normal trapezoidal teeth due to the mesh theory of the unique teeth profiles and have achieved high torque and high power transmission by using high-rigidity components. Although it varies depending on the field, it has a 1.4 to 1.8-fold transmission capacity compared to normal STS/HTS.

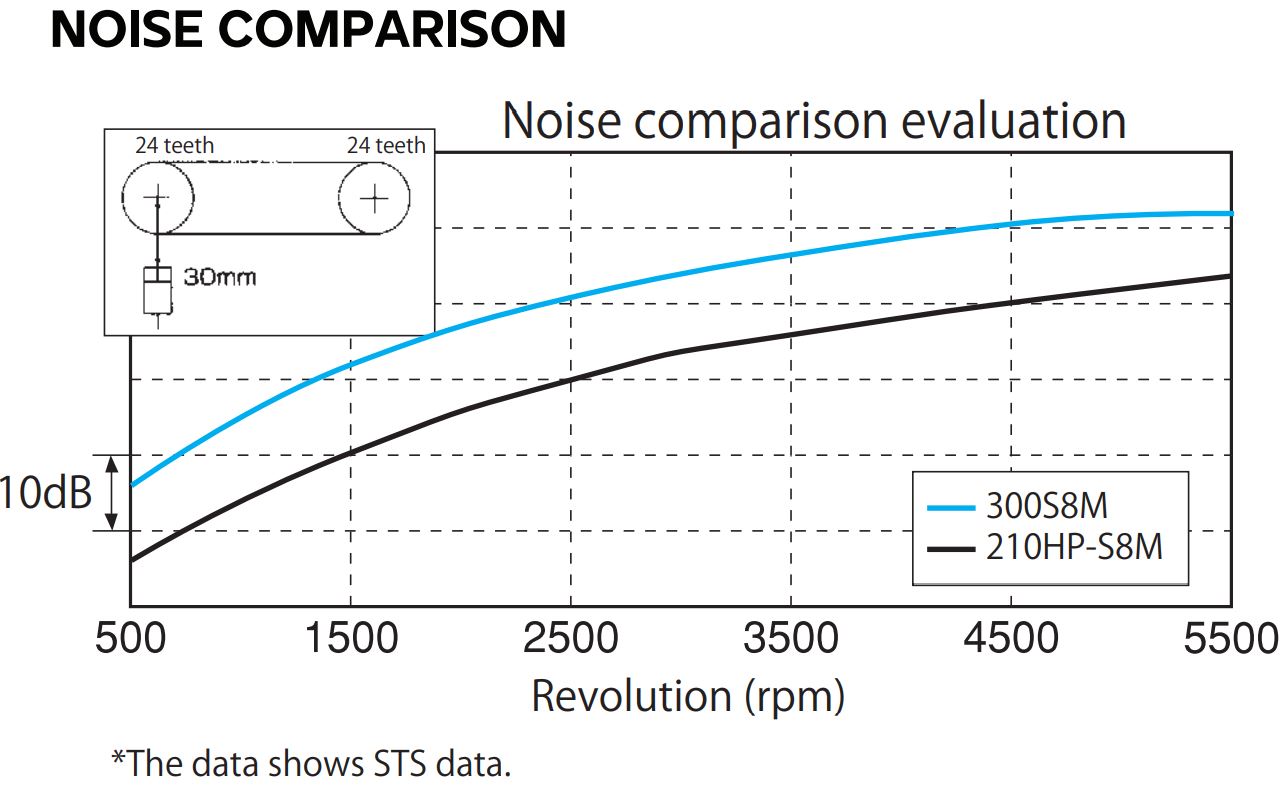

- Low noise
As the belt width can be narrower than the standard specification, the noise can be reduced.
- Miniaturized
The high transmission capacity allows a narrower width and a smaller pulley diameter than the standard specifications, allowing compact designs.
- Pulleys used
HP-STS can be used with the standard STS pulleys and TL STS pulleys.
*Manufacturable with the STS standard belt sizes. HP-HTS can be used with the standard HTS pulleys.

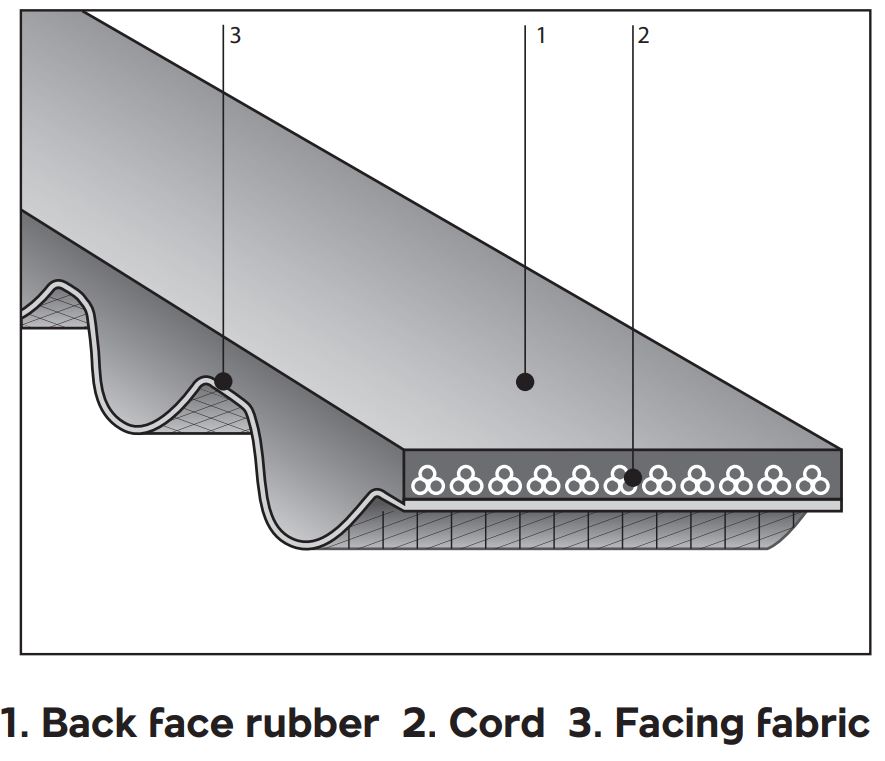

Structure
■ Back face rubber : Adoption of a synthetic rubber with little tooth deformation and high hardness
■ Cord : Glass cord taking the dimensional stability and flexibility into consideration
■ Facing fabric : Low noise is achieved by providing irregularities on the facing fabric surface and with the low frictional factor Type S14M has two layers of facing fabric, further lowering the noise and enhancing the durability. HP-S5M has aclean facing fabric specification.

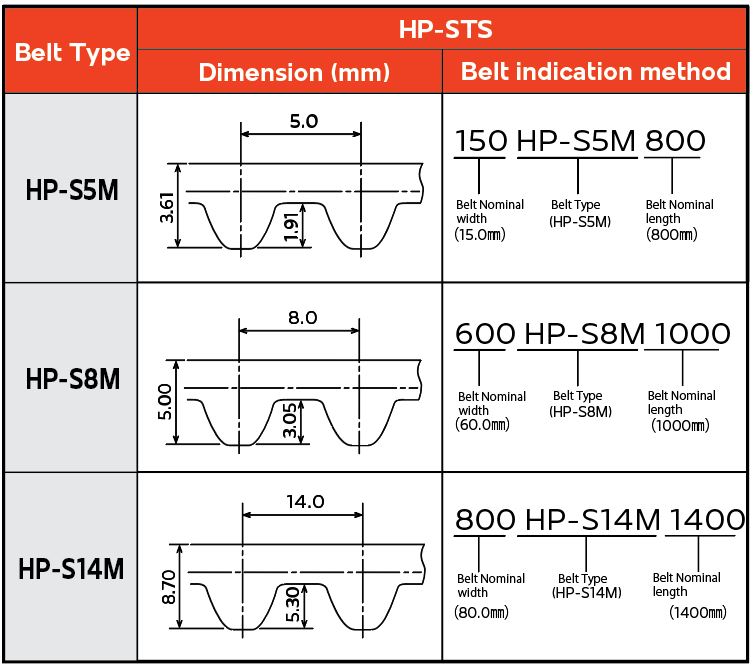

รูปแบบของขนาดฟันและวิธีการบ่งชี้

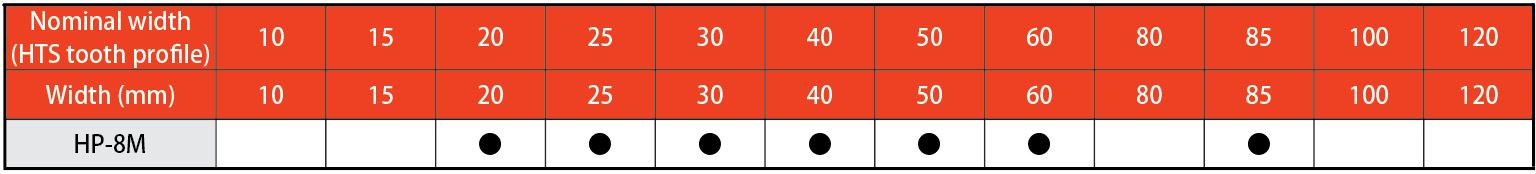

Belt standard widths
Note: For other belt widths than the above, please contact us.
* For the Stooth profile, the nominal width is ten times the belt width. For the HTS tooth profile, the nominal width is the belt width.
