| Material | Rubber |
| Cord | Glass fiber |
| Temperature range | – 30 – 90 ํC |

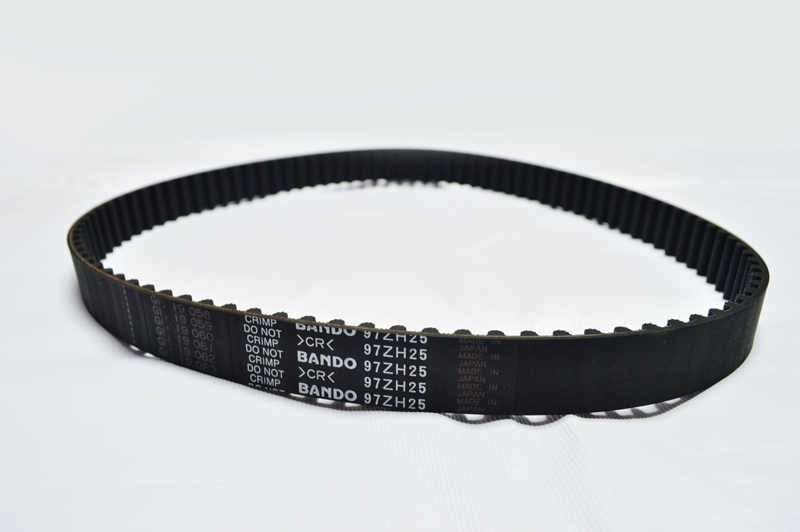

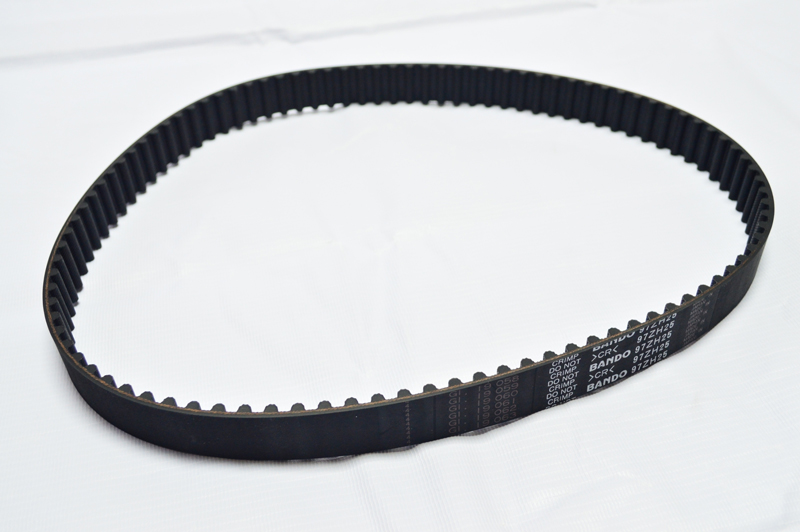

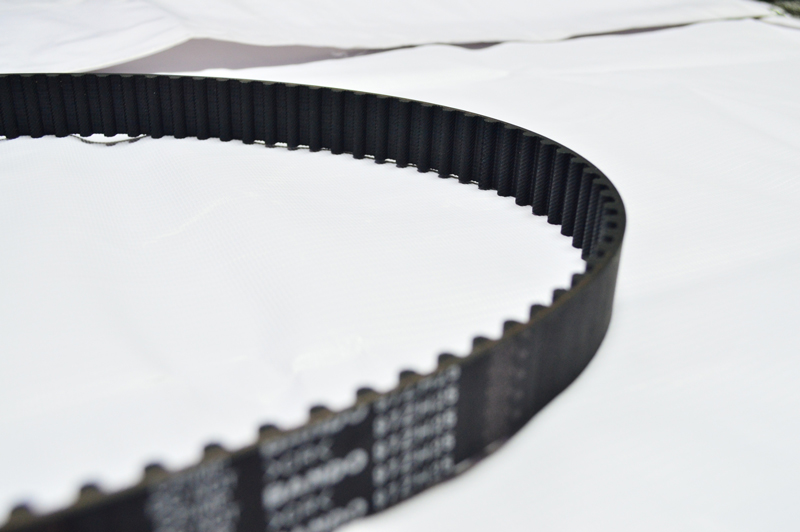

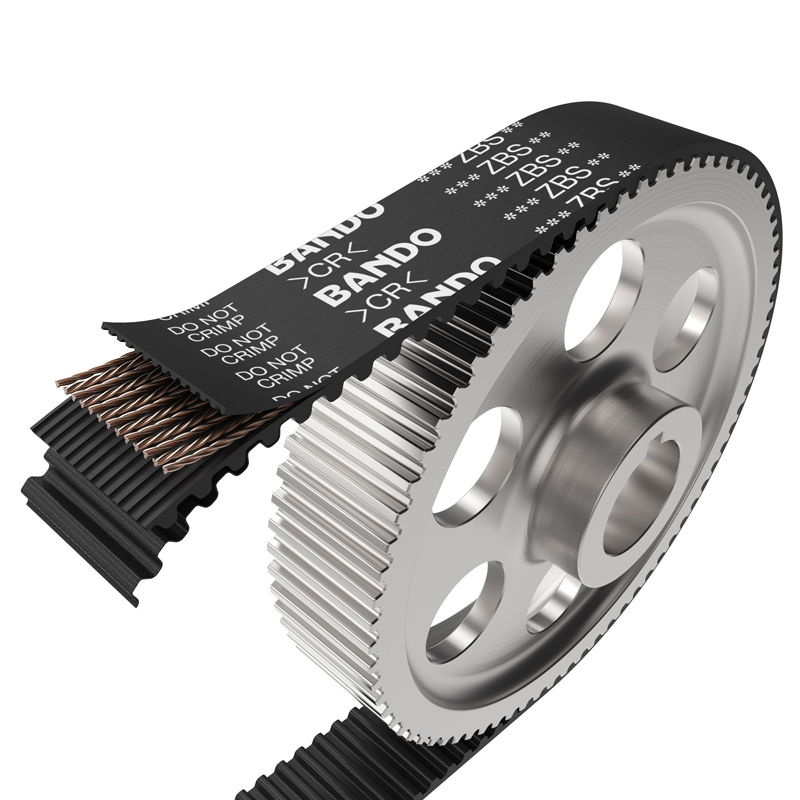

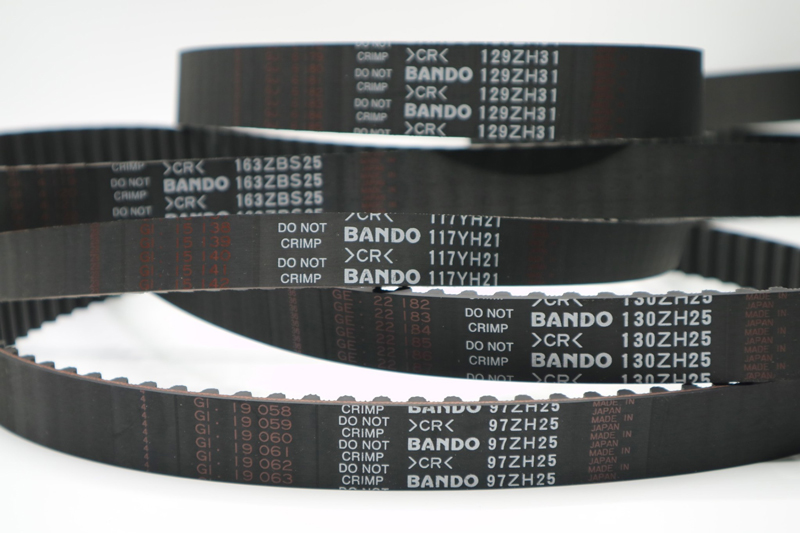

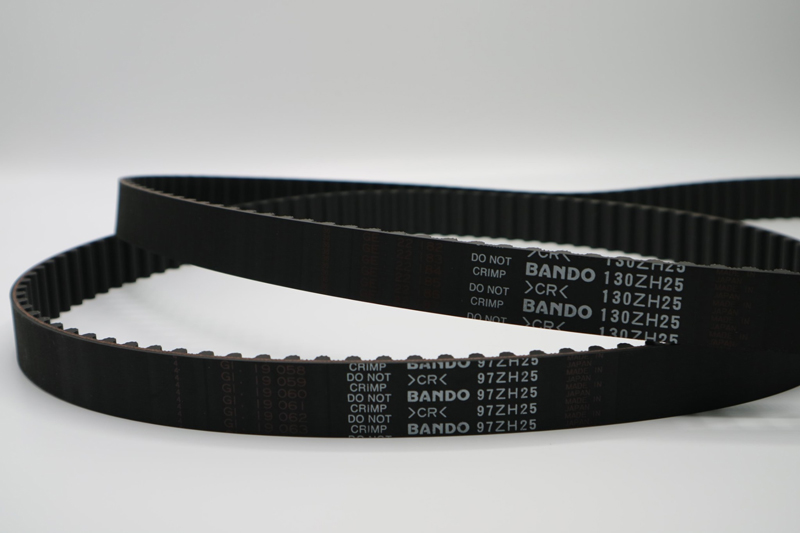

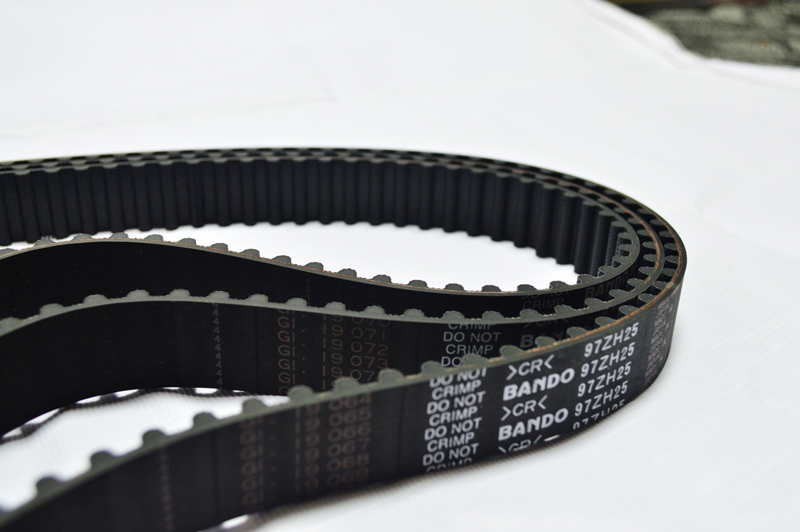

BANDO OHC SYNCHRONOUS BELT
แบนโด ซิงโครนัส
คุณสมบัติของสายพาน

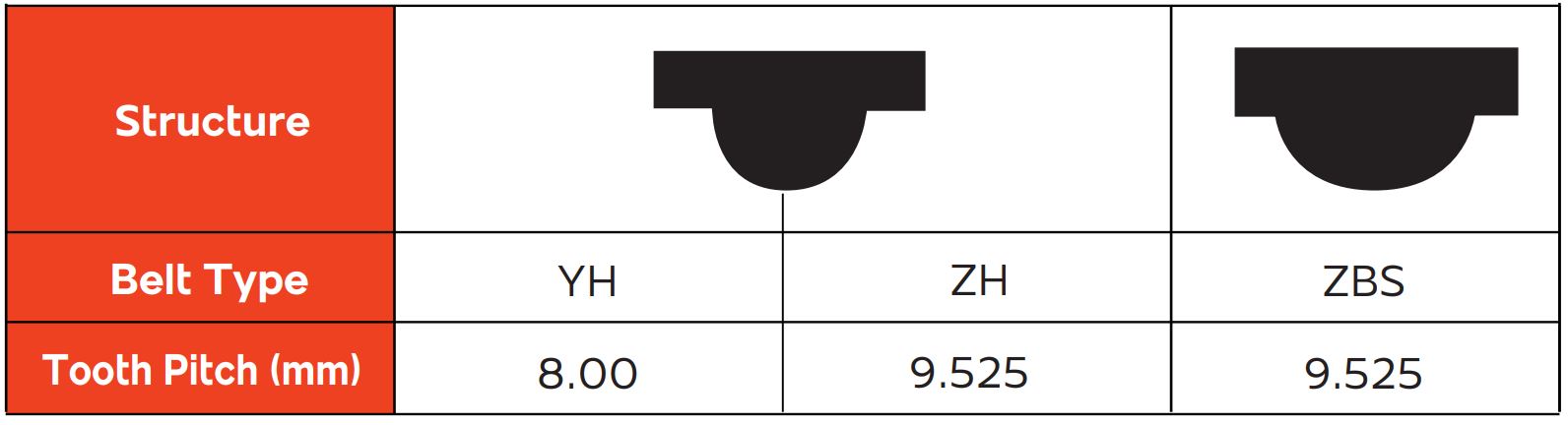

ร่องและขนาดของสายพาน

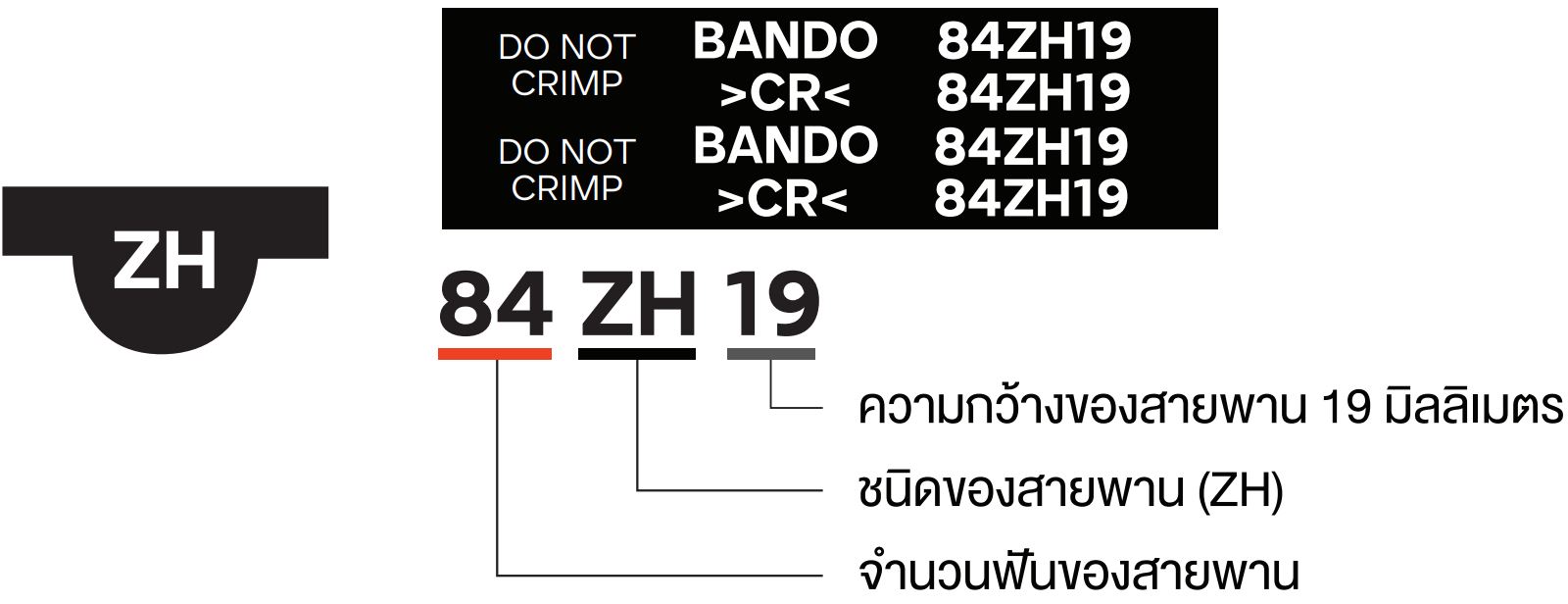

วิธีการอ่านสายพาน
| Type | Belt Code | Top Width | Thickness | Angle |
| B | 5 | 17.0 mm | 11.0 mm | 38 ํ |
| C | 7 | 22.0 mm | 13.0 mm | 38 ํ |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
| Type | Belt Code | Top Width | Thickness | Angle |
| FM | 2 | 10.6 mm | 7.3 mm | 35 ํ |
| A | 3 | 12.8 mm | 8.0 mm | 35 ํ |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | -30 – 90 ํC |
| Type | Belt Code | Top Width | Thickness | Angle |
| FA | 2 | 11.0 mm | 8.0 mm | 35 ํ |
| A | 3 | 13.2 mm | 8.5 mm | 35 ํ |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
| P | H | h | a | |
| mm | mm | mm | ( ํ ) | |
| 3PK-16PK | 3.56 | 4.3 mm | 2.0 mm | 40 |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
BANDO MANUFACTURING (THAILAND) LTD.
