Description

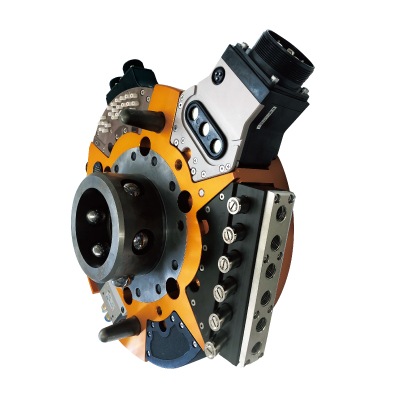

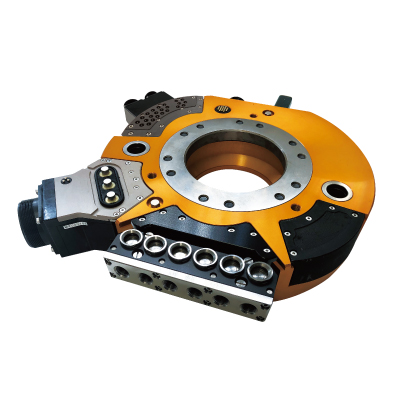

Features of QUICK-CHANGE GIGA
- Lock without touching
The Master Plate can lock onto the Tool Plate with a gap between them.
-
Enhanced mechanical fail-safe function!
Our proven mechanical fail-safe mechanism has been further enhanced with the addition of a spring back-up for greater reliability, so the Master and Tool Plates will not separate, even if pneumatic pressure fails.
-
Conforms to ISO standards for robot flanges!
The GIGA bolt pattern is compatible with heavy payload robot flanges. Bolt pattern: PCD 200, M12×6 pcs
-
Safety feature:fool-proof
Built-in lock/unlock sensor (selection NPN/PNP)
Built-in approach sensor (detecting clearance of Tool Plate)
Standardly equipped mechanical safety valve that allows Tool Plate to separate from Master Plate only at a certain spot on tool stand.

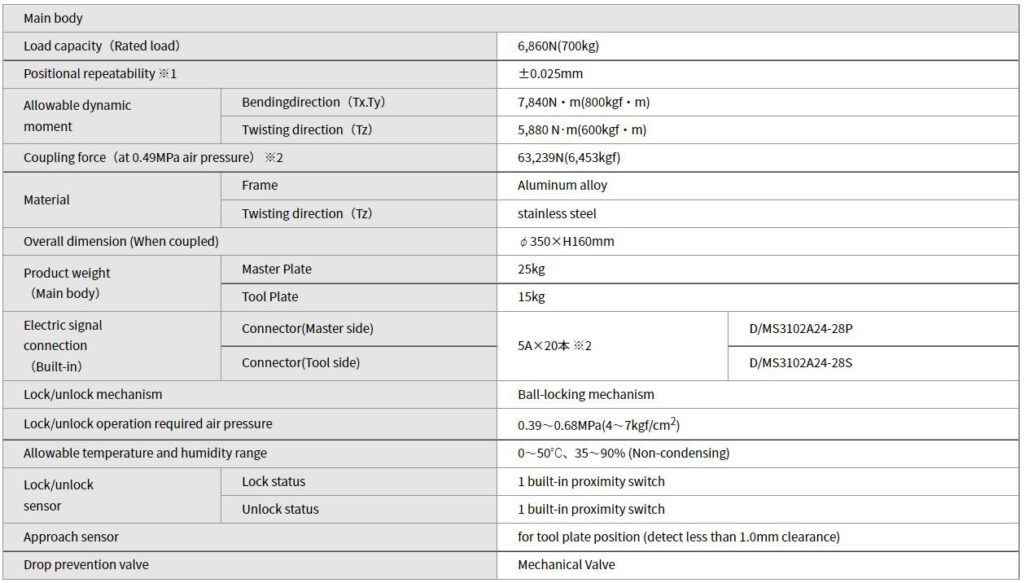

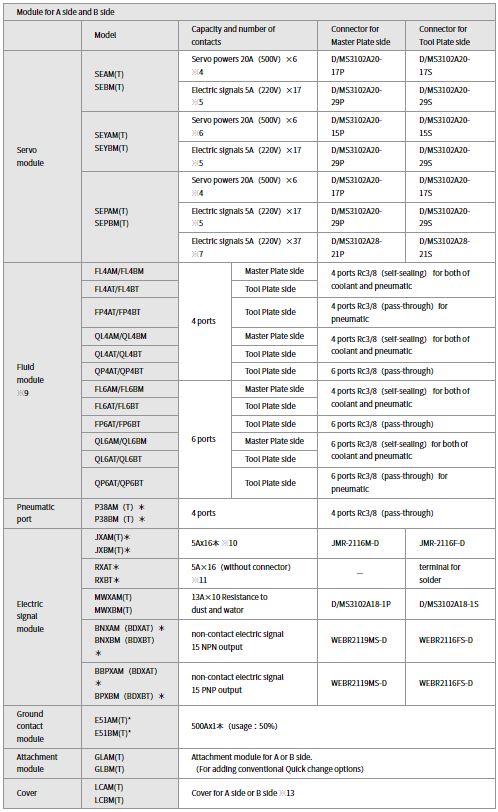

Specifications

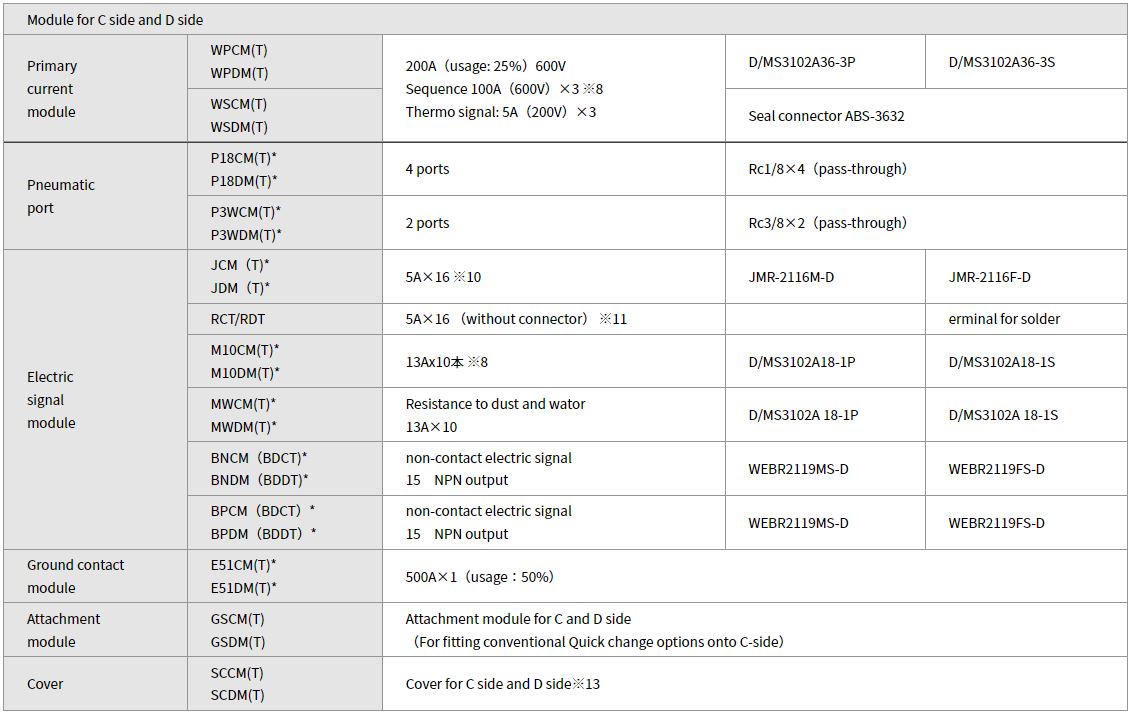

＊include attachment module (Will interfere with Large Cover (SC) on Tool Plate if cover is attached)

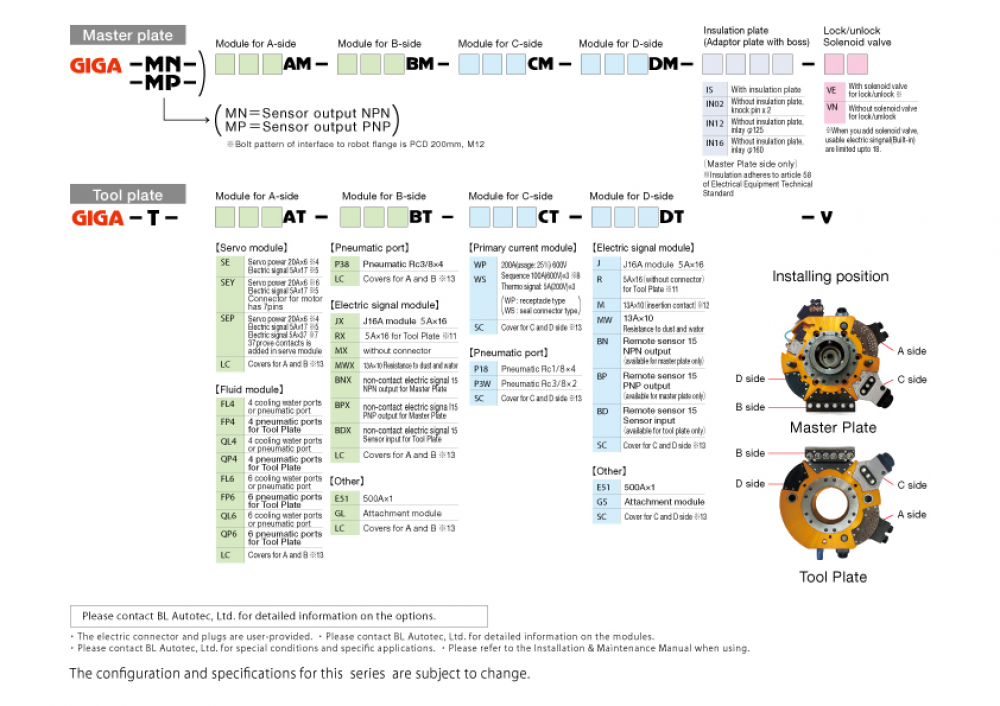

Ordering Information
Features of QUICK-CHANGE GIGA
- Lock without touching
The Master Plate can lock onto the Tool Plate with a gap between them.
-
Enhanced mechanical fail-safe function!
Our proven mechanical fail-safe mechanism has been further enhanced with the addition of a spring back-up for greater reliability, so the Master and Tool Plates will not separate, even if pneumatic pressure fails.
-
Conforms to ISO standards for robot flanges!
The GIGA bolt pattern is compatible with heavy payload robot flanges. Bolt pattern: PCD 200, M12×6 pcs
-
Safety feature:fool-proof
Built-in lock/unlock sensor (selection NPN/PNP)
Built-in approach sensor (detecting clearance of Tool Plate)
Standardly equipped mechanical safety valve that allows Tool Plate to separate from Master Plate only at a certain spot on tool stand.

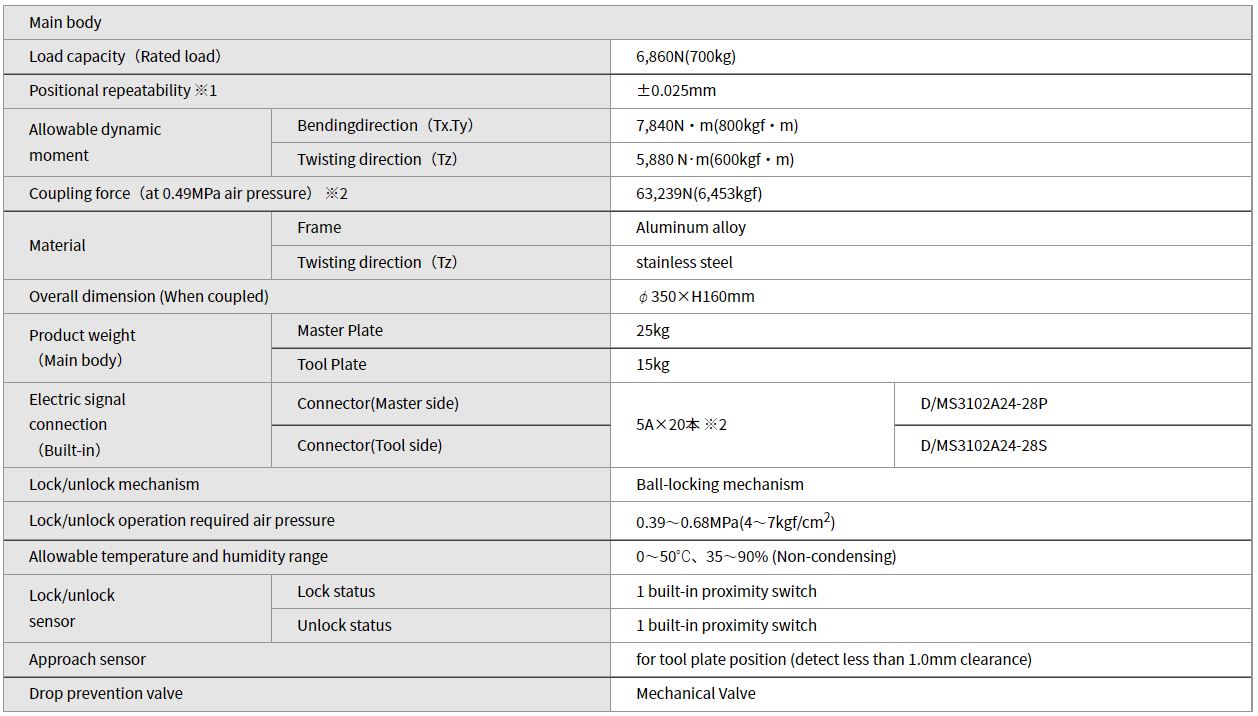

Specifications
＊include attachment module (Will interfere with Large Cover (SC) on Tool Plate if cover is attached)
Ordering Information
