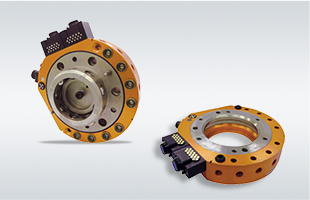

QUICK-CHANGE FLEX-300A

Description

Features of Flex-300A



• Heavy duty applications

For heavy duty applications, a special seal prevents dust from entering the locking mechanism and electrical contacts when the two plates are coupled. (Load Capacity: 300kg/Allowable static moment (Tx, Ty) :270kgf・m)

• Self-sealing pneumatic ports

There are ten pneumatic ports in the Master plate (Rc3/8). Eight of the ten ports are self-sealing, which automatically shut off air pressure when uncoupled and allow for easier air control in the system.

• Large misalignment correction capability

The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.

• Superior fail-safe locking mechanism

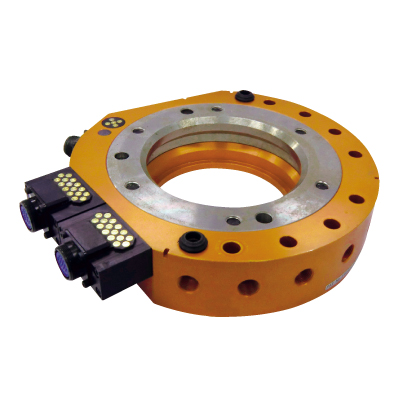

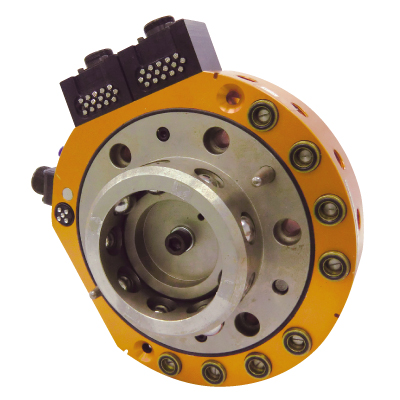

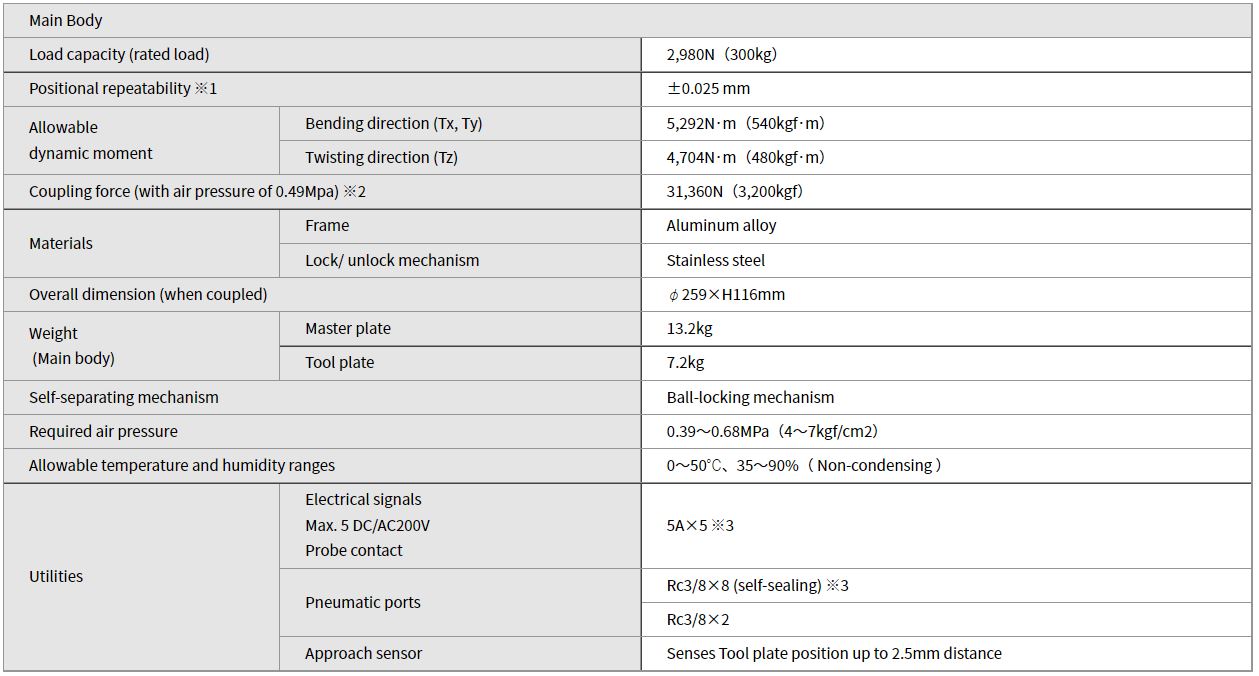

Specifications

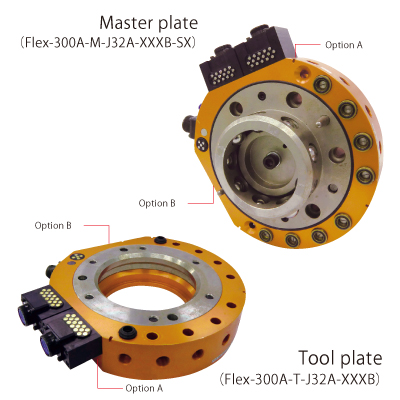

Option

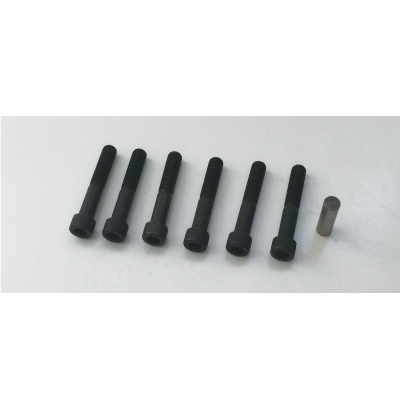

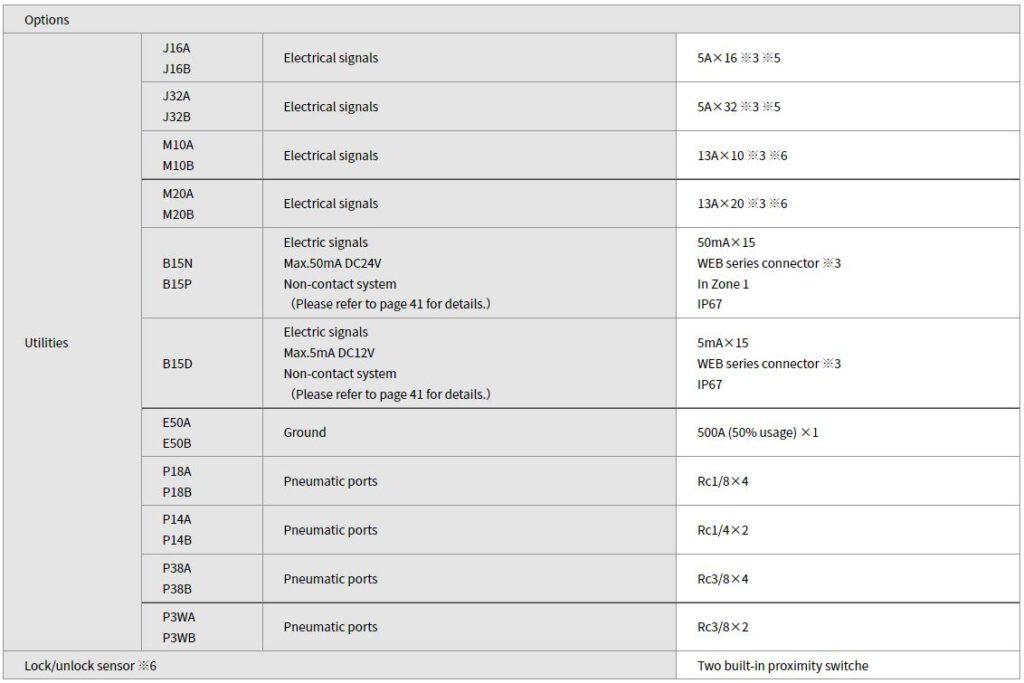

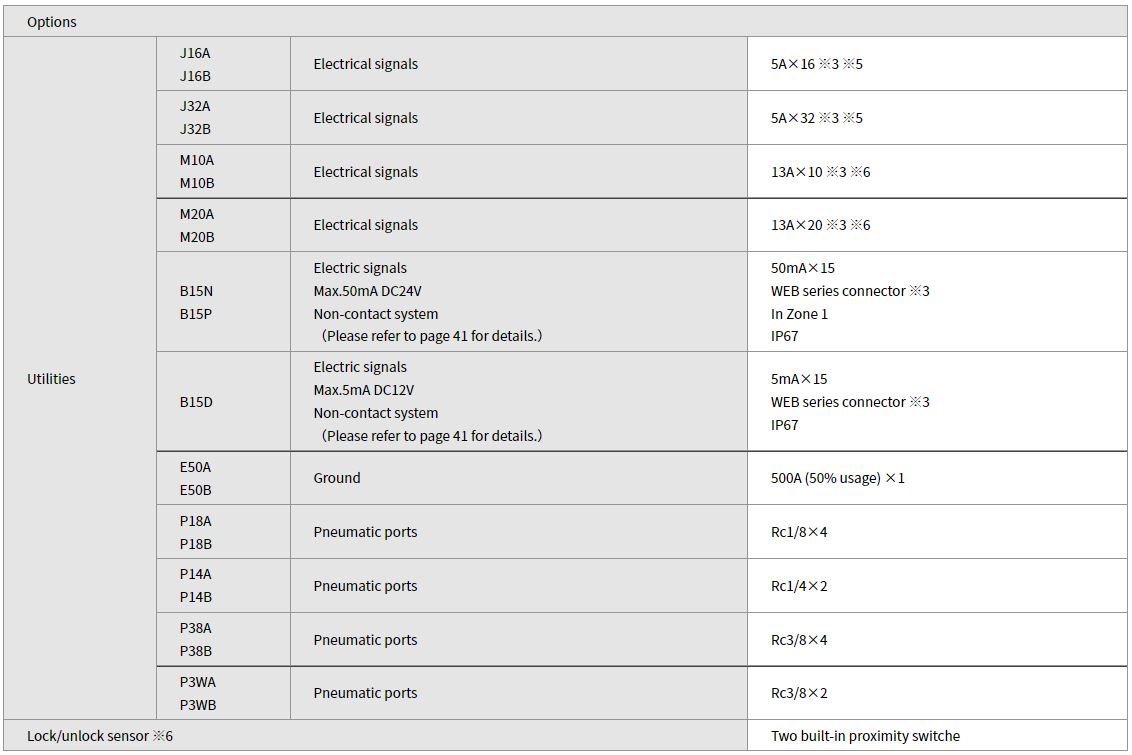

Electrical signal contact block

---

• Load capacity：300kg(2,940N)Flex-300A-M(T)-J16A,J16B


• Load capacity：300kg(2,940N)Flex-300A-M(T)-J32A,J32B


• Load capacity：300kg(2,940N)Flex-300-M(T)-M10A,M10B

• Load capacity：300kg(2,940N)Flex-300A-M(T)-M20A,M20B



Non-contact electric signal block

---

Load capacity：300kg(2,940N)Flex-300A-M(T)-B15NA_B,B15PA_BMaster side only）,B15DA_B（Tool side only）

Ground

---

Load capacity：300kg(2,940N)Flex-300A-M(T)-E50A,E50B



Pneumatic ports

---



• Load capacity：300kg(2,940N)Flex-300A-M(T)-P18A,P18B

• Load capacity：300kg(2,940N)Flex-300A-M(T)-P18A,P18B



• Load capacity：300kg(2,940N)Flex-300A-M(T)-P38A,P38B



• Load capacity：300kg(2,940N)Flex-300A-M(T)-P3WA,P3WB

Lock/unlock sensor

---

• Load capacity：300kg(2,940N)Flex-300A-M(T)-SA,SB
