V-BELT GREEN

Type Top Width Thickness Size Range
M 10.00 mm 5.5 mm Please download catalog
A 12.7 mm 8 mm
B 16.7 mm 10.3 mm
C 22.2 mm 13.5 mm
D 31.7 mm 19.0 mm
E 38.0 mm 23.0 mm
Material  Rubber
Cord Polyester
Temperature range -40 – 70  ํC

Request more information

Catalog download

Description

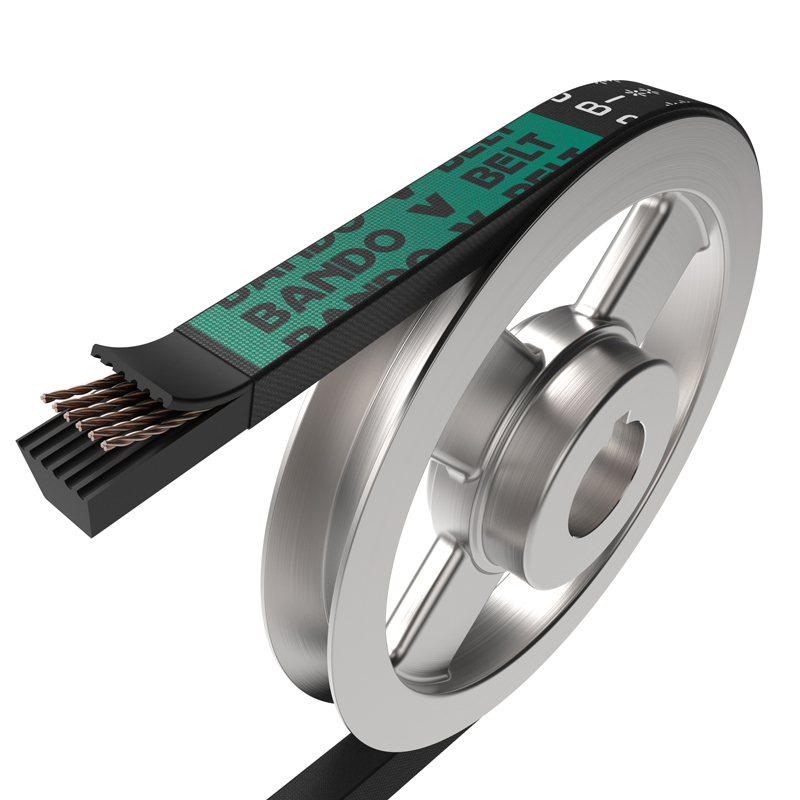

V-BELT GREEN

Structure

  • Cover fabric
    The cover fabric has a sufficient abrasion resistance to friction with the pulleys and is made of a strong, elastic, and bias special cloth. The further reinforcement with the abrasion-resistant rubber protects the inside sufficient.
  • Compression rubber
    It keeps the normal belt cross-sectional profile, has extremely little heat generation against bending, and is very flexible.
  • Adhesion rubber
    While it maintains the cord layer at an appropriate position, it also improves the adhesion between the cord layer and the rubber layer.
  • Cord
    It is the main part that transmits power and uses a polyester cord that has a high strength, has little elongation, and has little flex fatigue. It strongly adheres to and is integrated with the rubber layer; hence, in power transmission, each cord receives uniform force and can perform stable power transmission.
