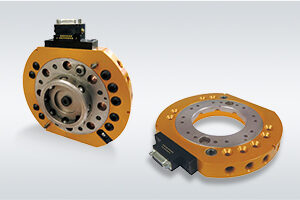

The BL QUICK-CHANGE Model QCP-220 is an automatic end-effector changer used in press handling and loading applications, with a payload capacity of 200kg for large panels and high-speed robots. It can be directly installed on a PCD125 mm robot flange.
Master plate Attachments
・6 bolts（M10×65）
・6 plain washers
・1 locating pin

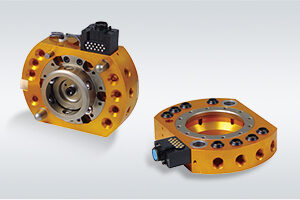

The BL QUICK-CHANGE Model USP-100A is a thin-shaped automatic end-effector changer designed to handle the high-speed conveyance of press parts. The thin design allows end-effectors on the parallel displacement arm to work on molding applications in press processes. Even if the opening is narrow, press parts can be conveyed without changing direction. (Japan Patent No. 3717923) Master plate Attachments ・8 bolts（M8×30） ・2 locating pins（MSY8-20） ※Seal plate, O-ring and screws are pre-assembled.

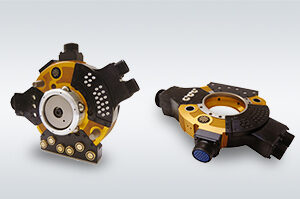

QUICK-CHANGE ZEUSTM is available such as spot-welding gun exchange, material handling and tool changing. It can use for robot payloads of 150-230kg. ZEUS incorporates the proven locking mechanism of the BL Quick-Change. It is a new, advanced Quick-Change, and ZEUS is light weight and thinness when coupled.
In case of type of Master plate is M1（PCD125）
| (M1)… | Stepped Parallel Pin（φ10×25）×2pcs, |
| Hexagon socket bolt（custom） | |
| (M10×65）×6pcsWasher（φ14）×6pcs |
| (M2)… | Stepped Parallel Pin（φ10×25）×2pcs, |
| Hexagon socket bolt（custom） | |
| (M10×50）×6pcsHexagon socket bolt（custom） | |
| (M10×20）×6pcs, Washer（φ14）×12pcs, | |
| (M3)… | Stepped Parallel Pin（φ10×25）×2pcs, |
| Hexagon socket bolt（custom） | |
| (M10×50）×6pcsHexagon socket bolt（custom） | |
| (M10×20）×6pcs, Washer（φ14）×6pcs, | |
| Washer（for M12）×6pcs |

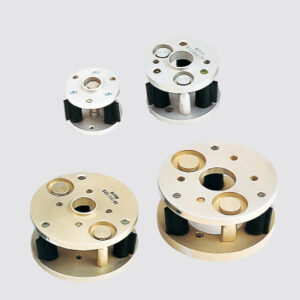

The RCC Device is designed to perform remote compliance functions, incorporating durable, yet flexible rubber mount elements. The device, which is installed between the robot arm (or other automated assembly equipment) and the gripper, simplifies assembly because the device corrects lateral, cocking (diagonal) and/or torsional positional misaligment. The device reduces the number of assembly defects and lost time due to misalignment, and helps prevent equipment damage. The result is improved product quality and manufacturing productivity.
Showing 25–28 of 28 results
