Description

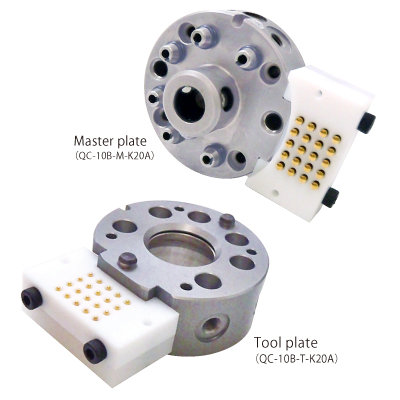

Features of QC-10B
-
Lock without touching
The Master plate can lock onto the Tool plate with a gap between them.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple
if the air pressure is shut off.

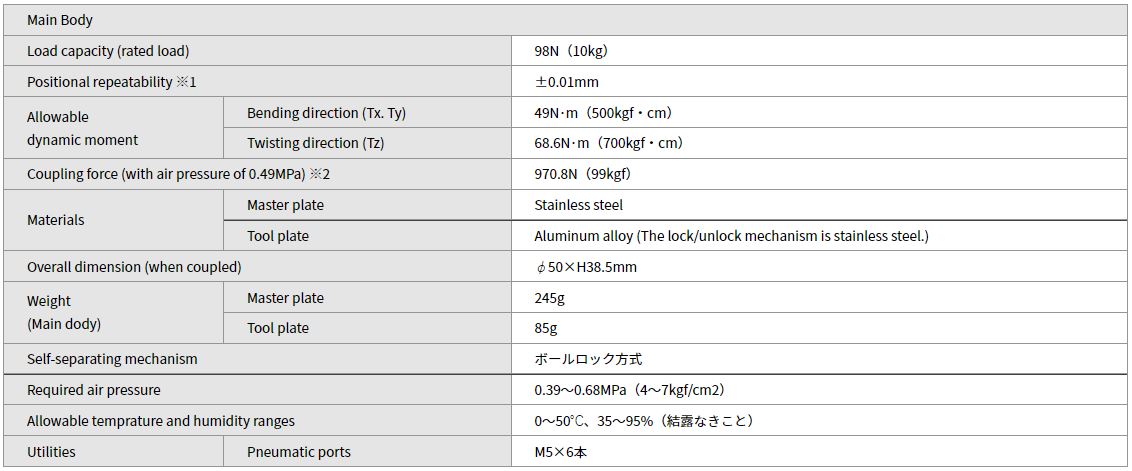

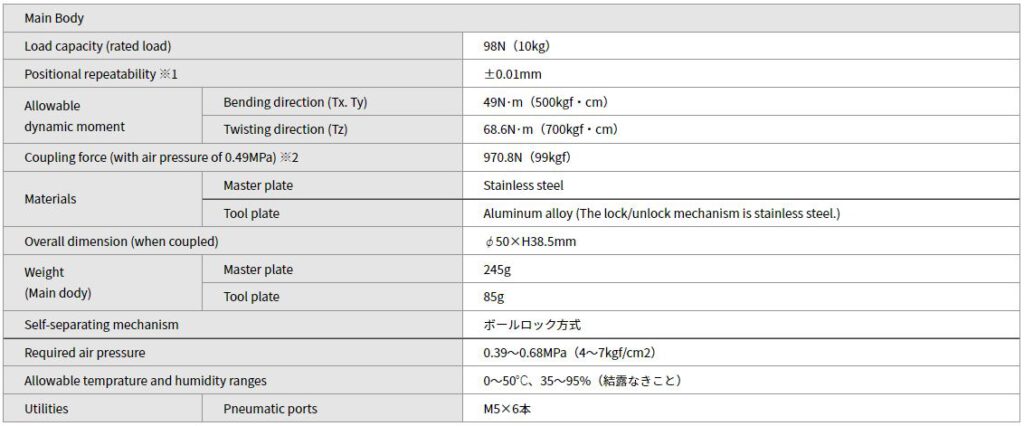

Specifications

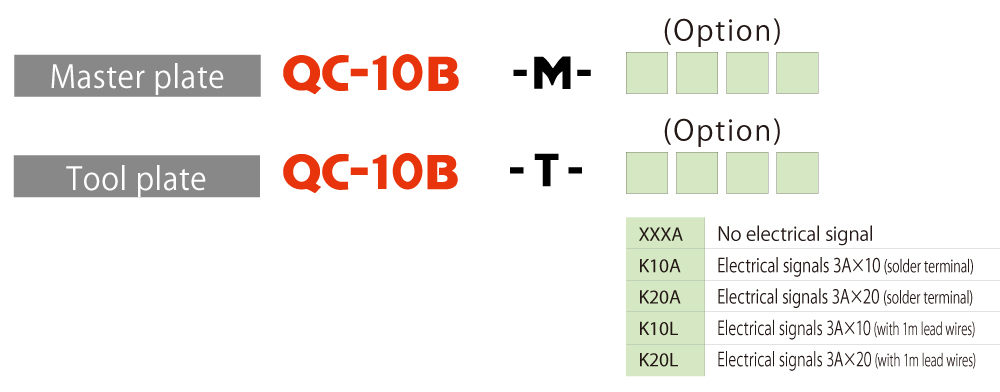

Ordering Information

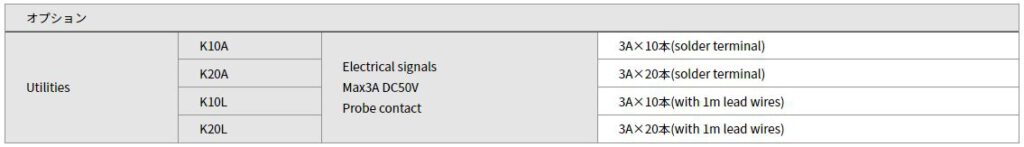

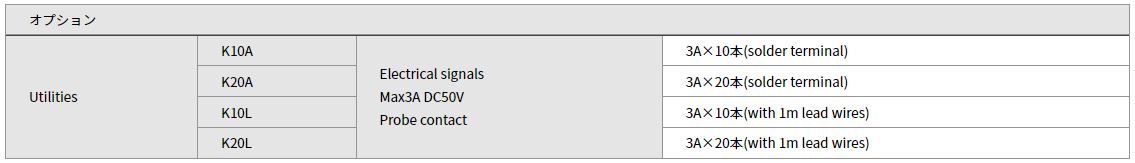

Option

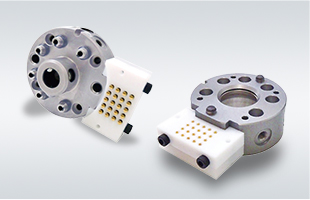

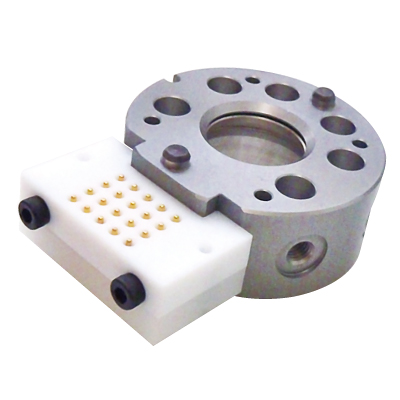

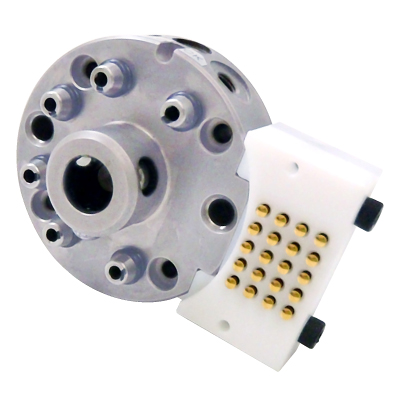

- Electrical signal contact block
Load capacity：10kg(98N)QC-10B-M(T)-K10A
Load capacity：10kg(98N)QC-10B-M(T)-K20A
Load capacity：10kg(98N)QC-10B-M(T)-K10L
Load capacity：10kg(98N)QC-10B-M(T)-K20L
- Robot Interface Plate for QC-10B
Load capacity：10kg(98N)AP101
PCD:31.5
Bolt size:M5
Hole for locating pin:
2×φ5H7
Boss size:φ12h7
Boss Height:3mm

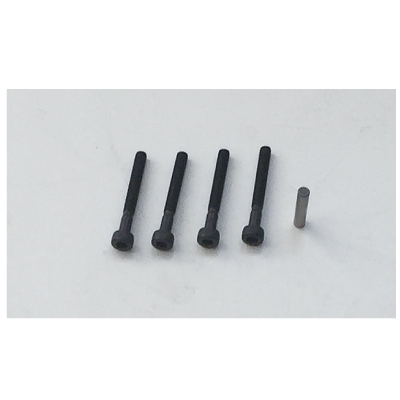

Accessories(Bolts and pin)
M5×10 ( 4 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins):
71g
Load capacity：10kg (98N)AP102
PCD:60
Bolt size:M5
Hole for locating pin:
φ5H7
Boss size:φ45H7
Boss Depth:Depth 10.5mm
Accessories(Bolts and pin):
M5×10 ( 4 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins)
68g
Load capacity：10kg(98N)AP103
PCD:56
Bolt size:M4
Hole for locating pin:
2×φ4H7
Boss size:φ62H7
Boss Depth:8mm
Accessories(Bolts and pin)
M5×10 ( 4 pcs ）
MSY4-15 ( 1 pc ）
Weight
(Including bolts and pins):
130g
Load capacity：10kg(98N)AP104
PCD:31.5
Bolt size:M5
Hole for locating pin:
φ5H7
Boss size:φ20h7
Boss Height:3mm
Accessories
(Bolts and pin):
M5×10 ( 7 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins):
79g ( Bolts 7pcs )
68g ( Bolts 7pcs )
