| Material | Rubber |
| Cord | Glass Fiber |
| Temperature range | -30 – 90 ํC |

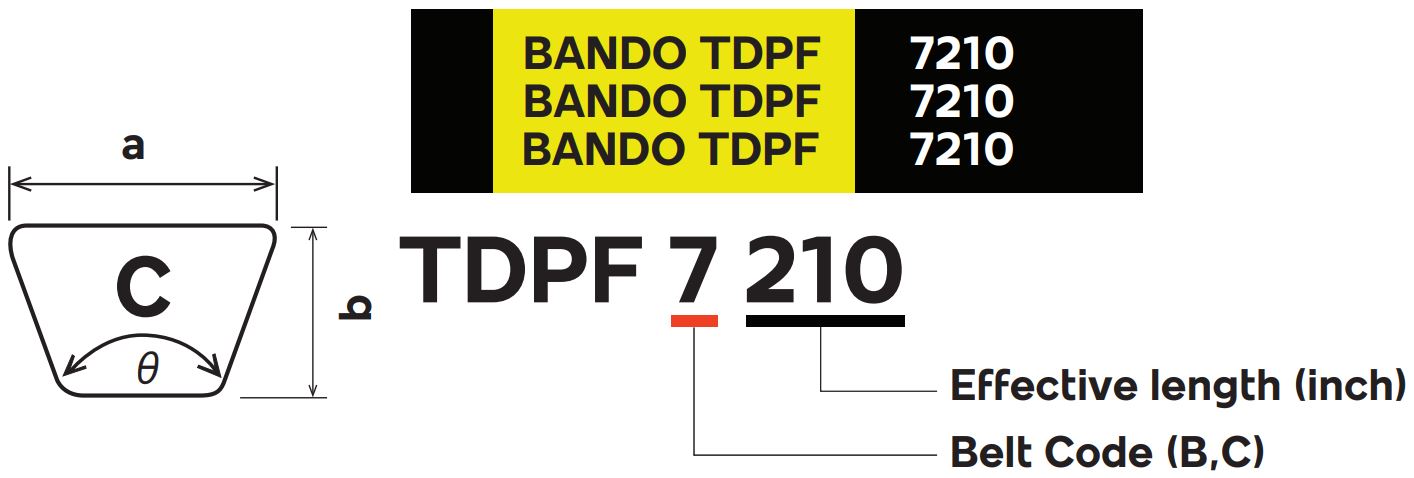

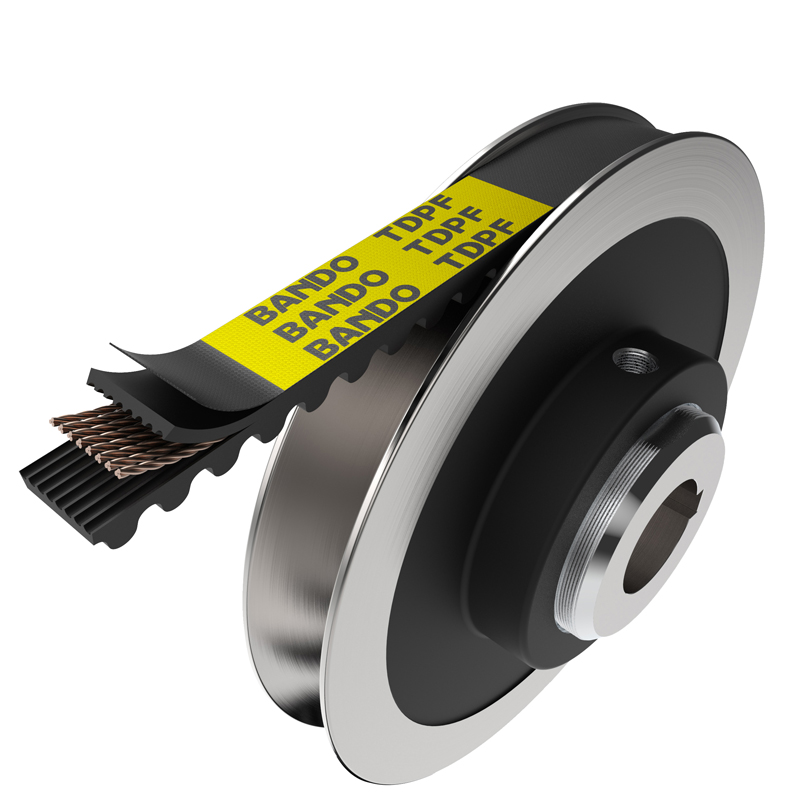

| Type | Belt Code | Top Width | Thickness | Angle |
| B | 5 | 17.0 mm | 11.0 mm | 38 ํ |
| C | 7 | 22.0 mm | 13.0 mm | 38 ํ |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |

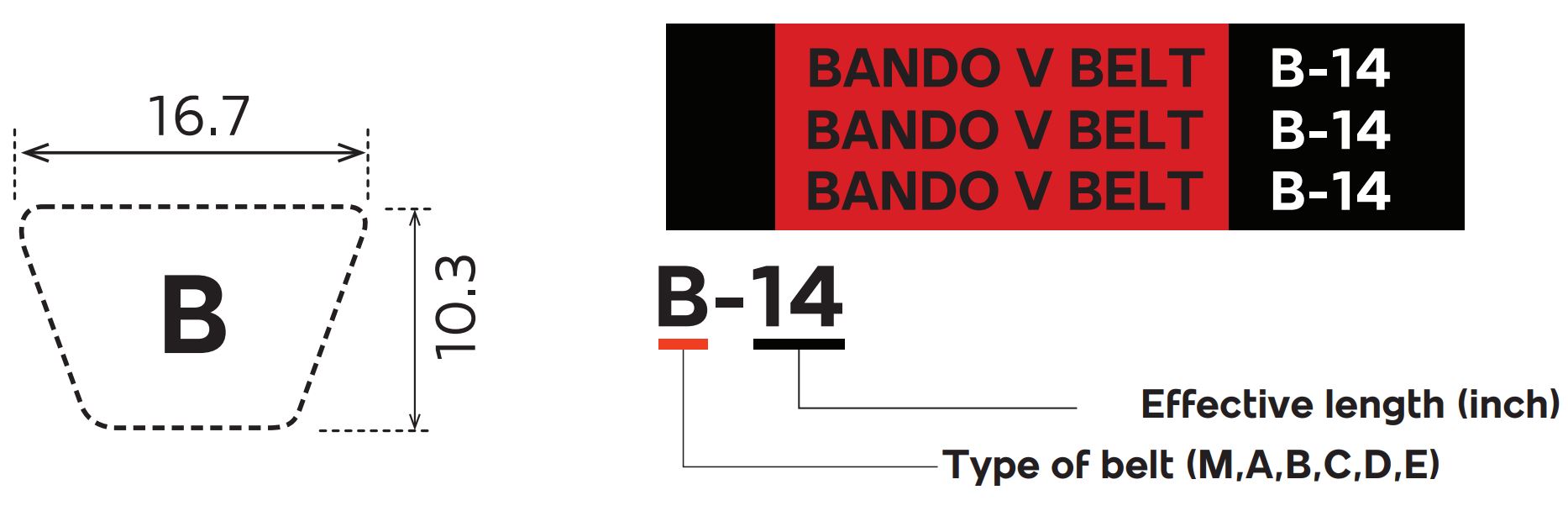

| Type | Top Width (a) | Thickness (b) | Size Range |
| M | 10.0 mm | 5.5 mm | Please download catalog |
| A | 12.7 mm | 8 mm | |
| B | 16.7 mm | 10.3 mm | |
| C | 22.2 mm | 13.5 mm | |
| D | 31.7 mm | 19.0 mm | |
| E | 38.0 mm | 23.0 mm |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | -30 – 90 ํC |

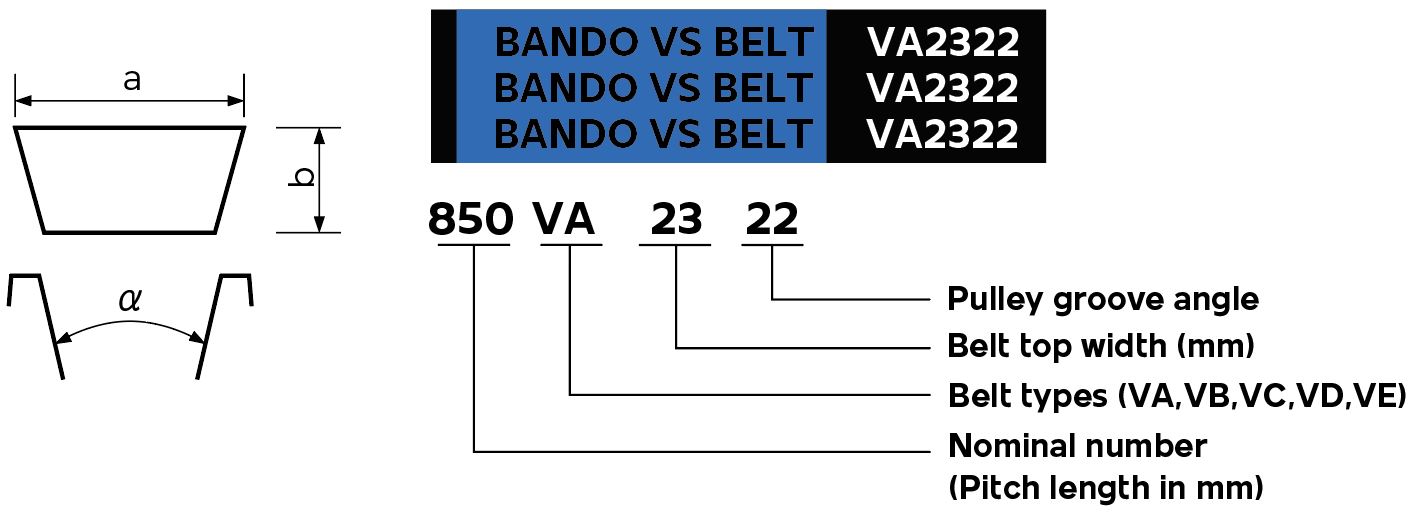

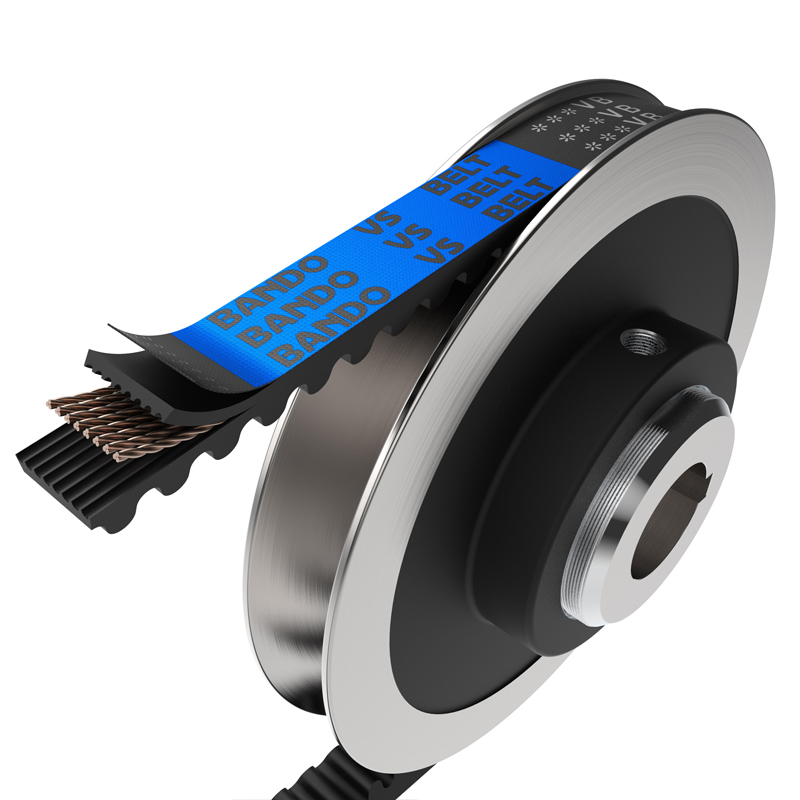

| Type | Top Width (a) | Thickness (b) | Pulley Groove Angle ∝ | Size Range |
| VA | 16~32 mm | 8.5 mm | 22~38 | Please download catalog |
| VB | 20~38 mm | 10 mm | 22~38 | |
| VC | 24~45 mm | 11.5 mm | 22~38 | |
| VD | 30~54 mm | 13.5 mm | 22~38 | |
| VE | 37~67 mm | 16 mm | 22~38 |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
Showing 49–56 of 56 results
