Description

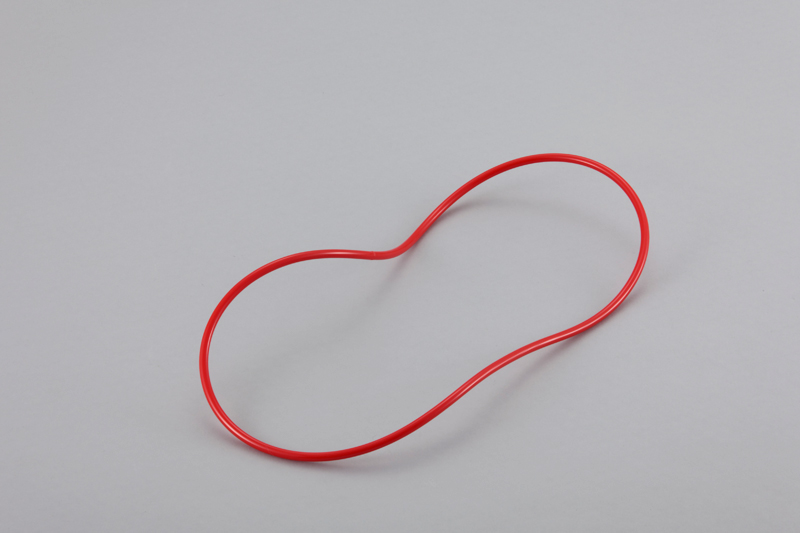

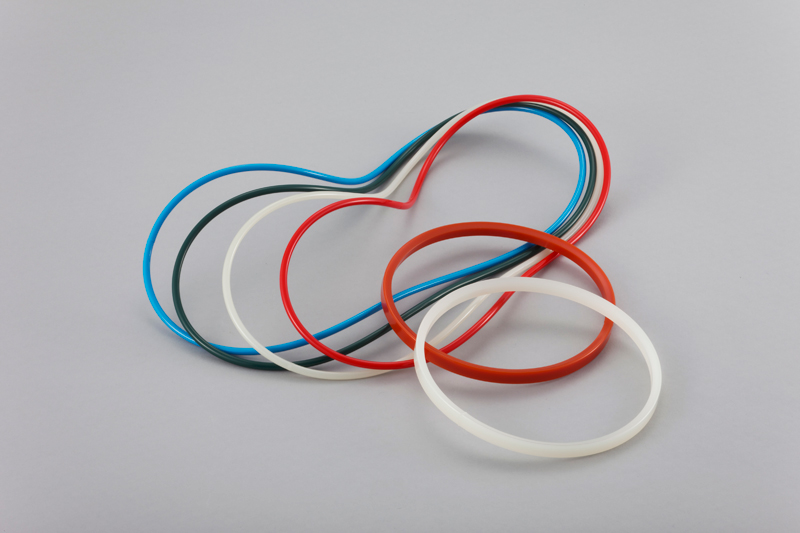

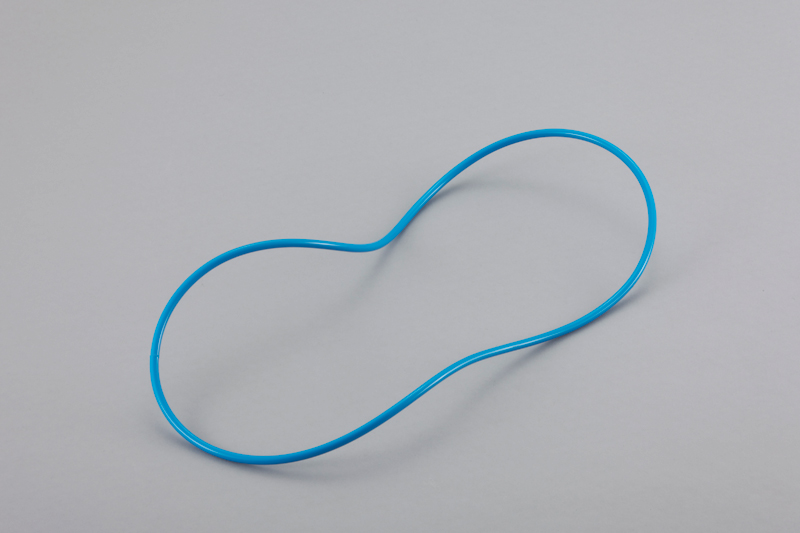

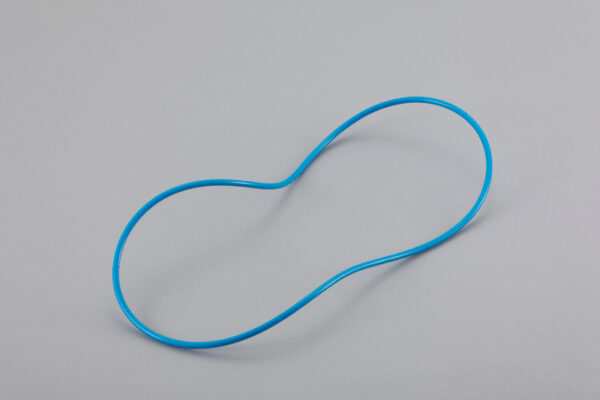

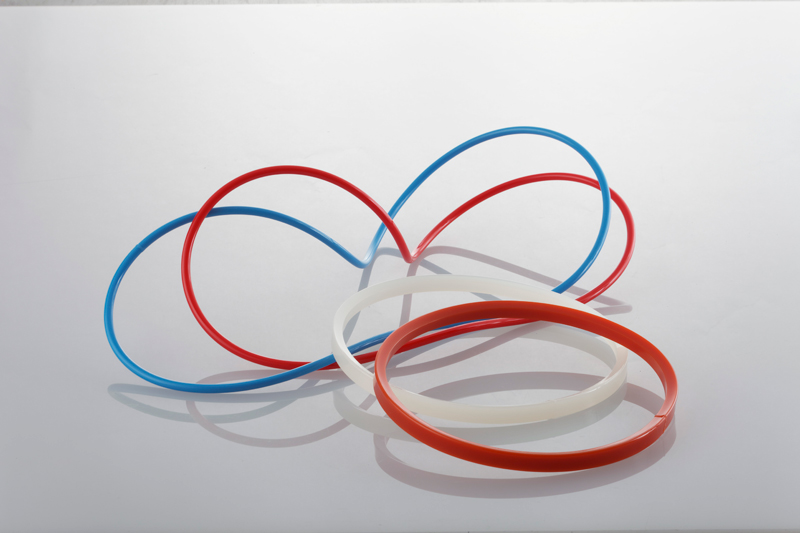

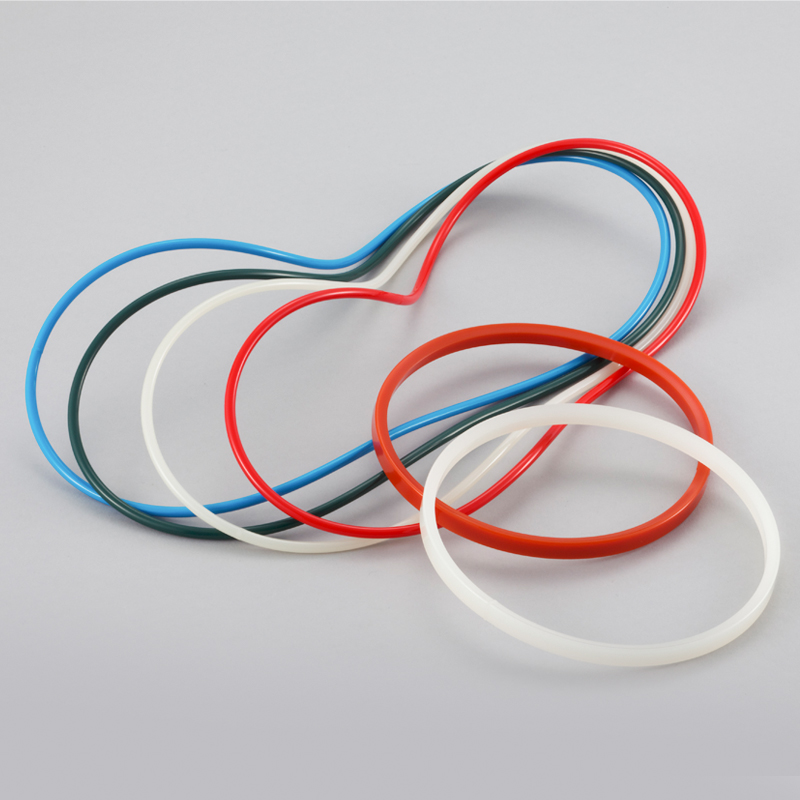

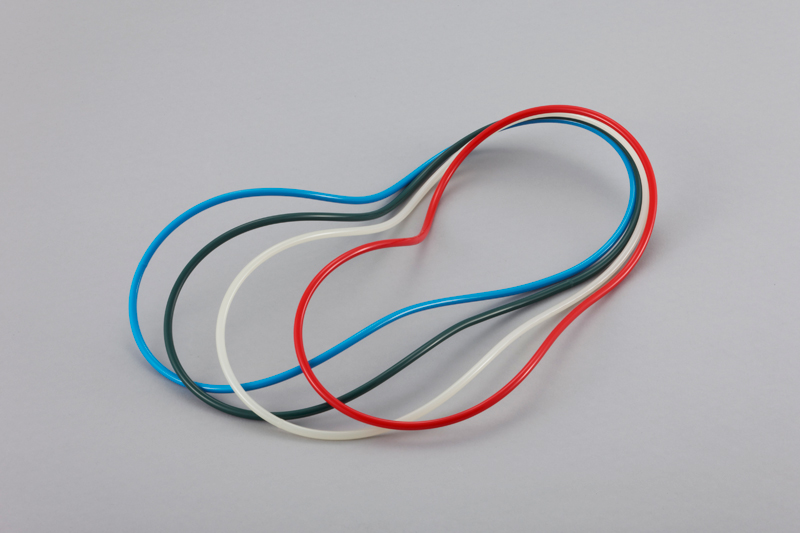

BANCORD ROUND BELT/V-BELT
Features
- FLEXIBLE EFFECTIVE LENGTH
As it can be simply and strongly joined by heating, a belt with a required effective length can be obtained in an in stant. As the effective length can be freely selected regard less of standards, it allows for a design that makes most of the performance of the machine.
- SIMPLE INSTALLATION AND MANAGEMENT
It can be installed without disassembling the machine and requires little management, such as troublesome tension adjustment.
- MULTI-SHAFT TRANSMISSION AND THREE DIMENTIONAL
TRANSMISSION ARE POSSIBLE (ROUND BELT)
As the cross section has no direction, the belt allows multi-shaft transmission and three-dimensional complex transmission such as direction changes by idler pulleys.
- EXCELLENT MECHANICAL CHARACTERISTICS
As it uses Bancollan (polyurethane), which has excellent abrasion resistance and tear resistance, it provides excellent performance as a belt as well as an industrial material.

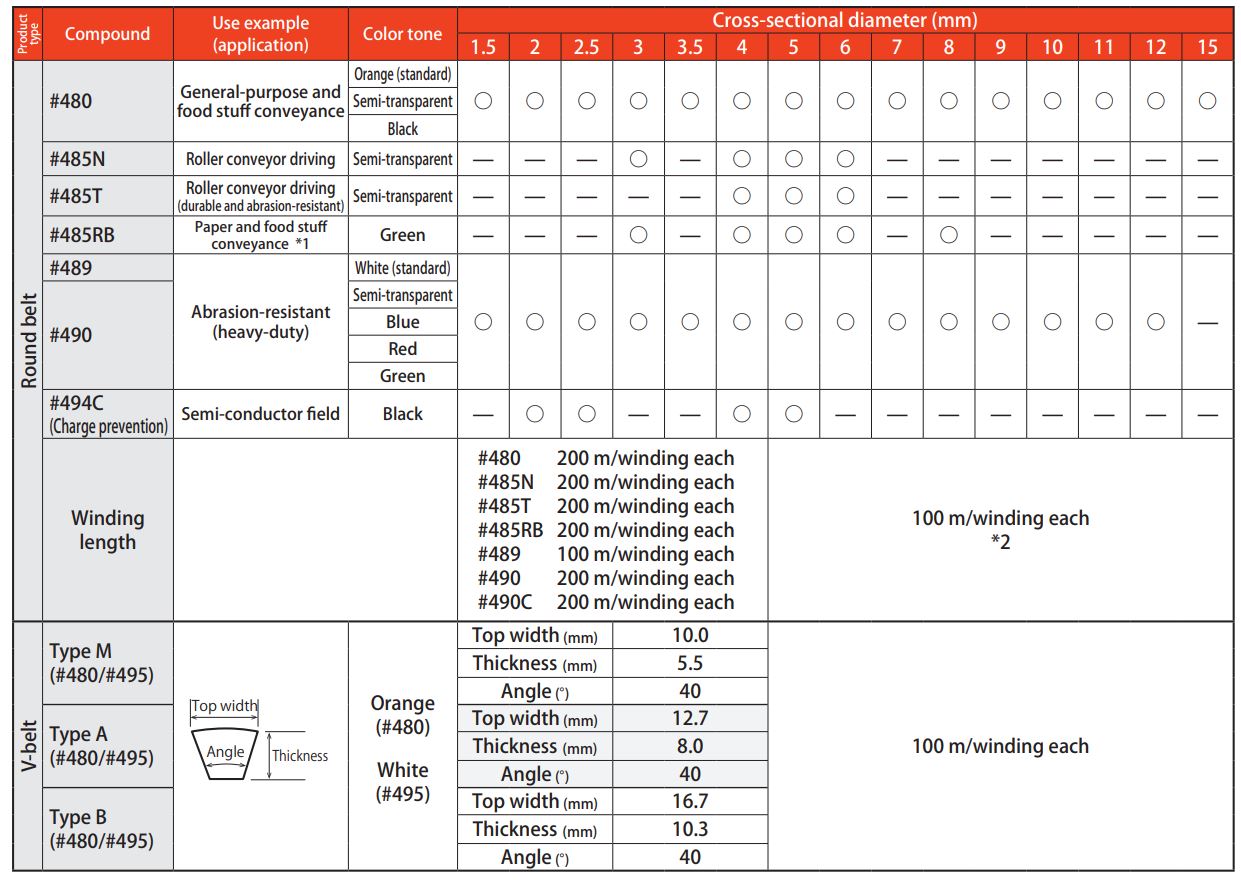

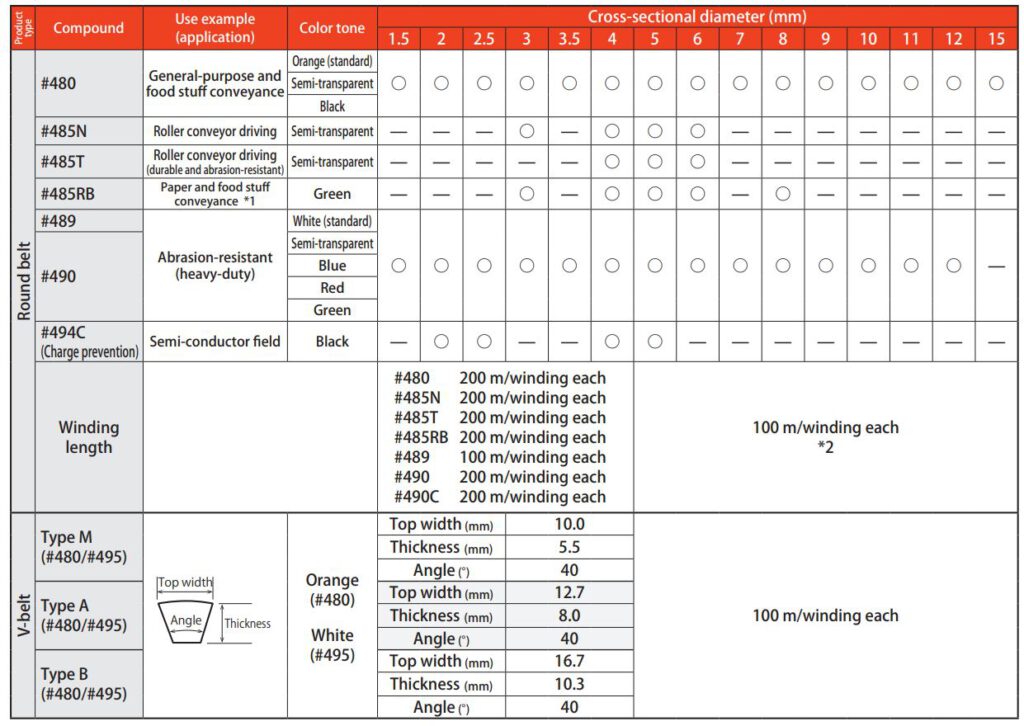

Type/Size
*1 Grain surface specification
*2 For [#480 Cross-sectional dia. 15 mm] and [#494C Cross-sectional dia. 5 mm], 50
*We perform joining if requested. (Only winding for a line diameter of 15 mm) The perimeters that can be joined are 125 mm or more for a line diameter of up to 2.5 mm and 50 times the line diameter or more for a line diameter of 3 mm or more.
* #480 (not including standard products) and #490 are made to order; hence, for delivery period and lots, please contact our sales company or distributer.
* For joining of belts with a line diameter of 15 mm, please contact our sales company or distributor.
* Passed Notice No. 370 of the Ministry of Health and Welfare concerning food hygiene (not including #480 black and #494C).

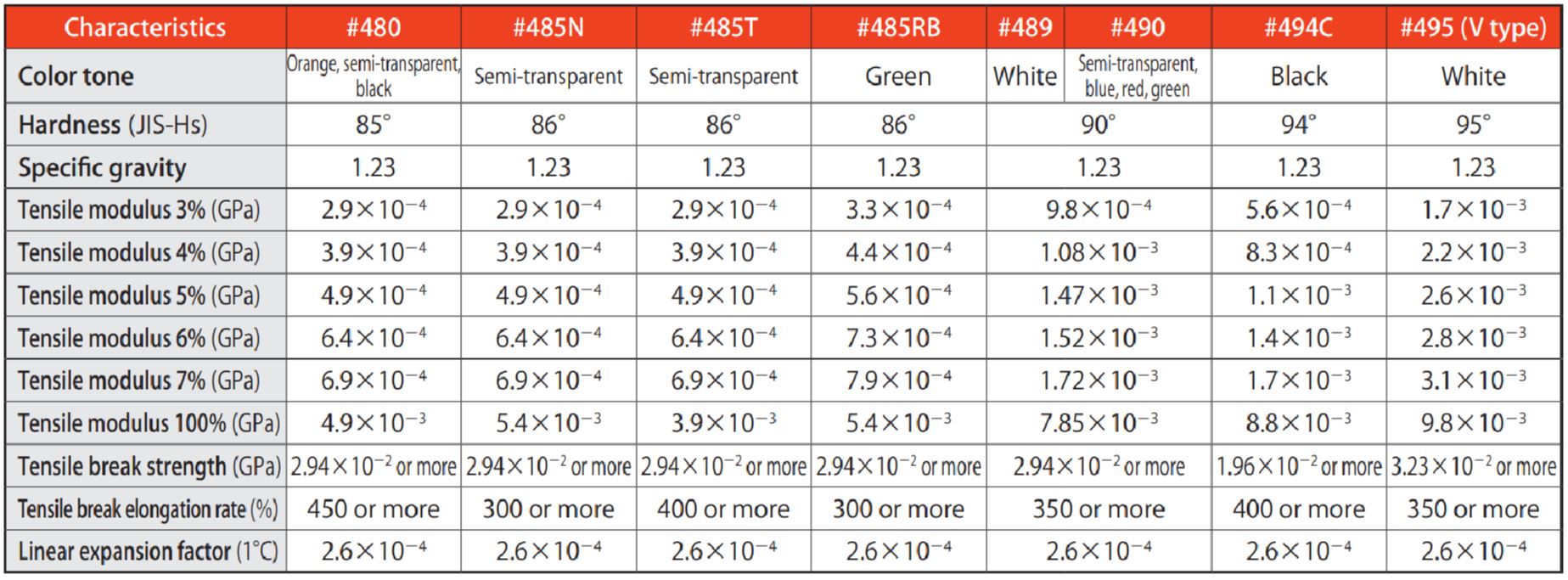

Mechanical Properties
Bancord is widely used as a general industrial material, such a power transmission belt, for its excellent mechanical properties.
The main mechanical properties of Bancord are as follows.

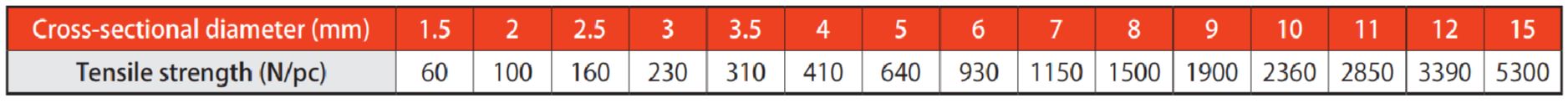

Round belt

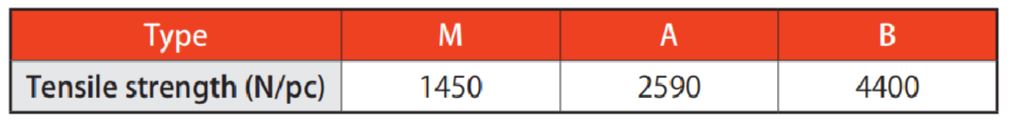

V-belt

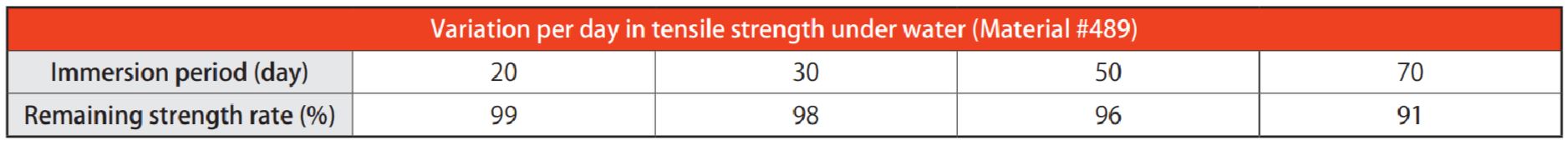

Water Resistance
Bancord is especially studied and improved in water resistance; hence, it can be used for a very long period of time even under high humidity.
Note 1) The samples were immersed under water at a temperature of 40°C with 5% stretch.

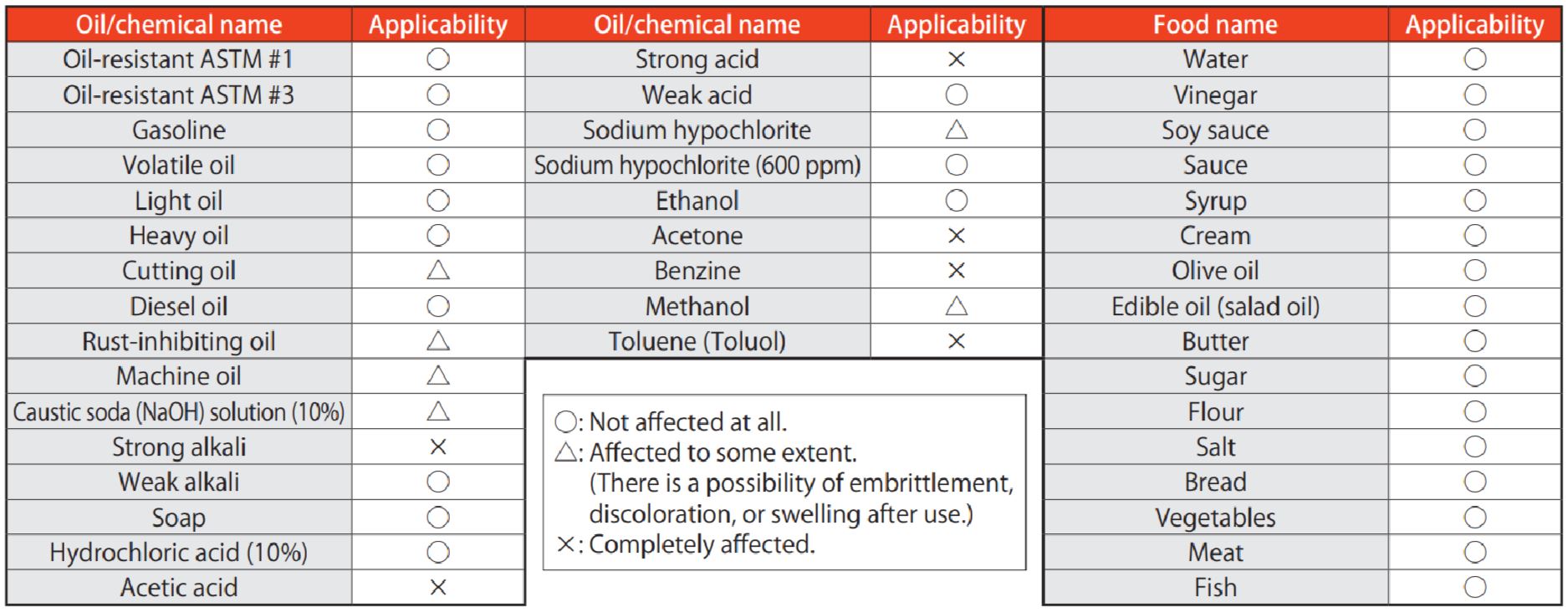

Oil Resistance and Chemical Resistance
The following table shows a rough guide of applicability when oil or chemicals adhere to the belt at normal temperature.Oil Resistance and Chemical Resistance
If the belt is completely effected or you use the belt at a higher-temperature range than normal temperature, please consult our sales company or distributor.
