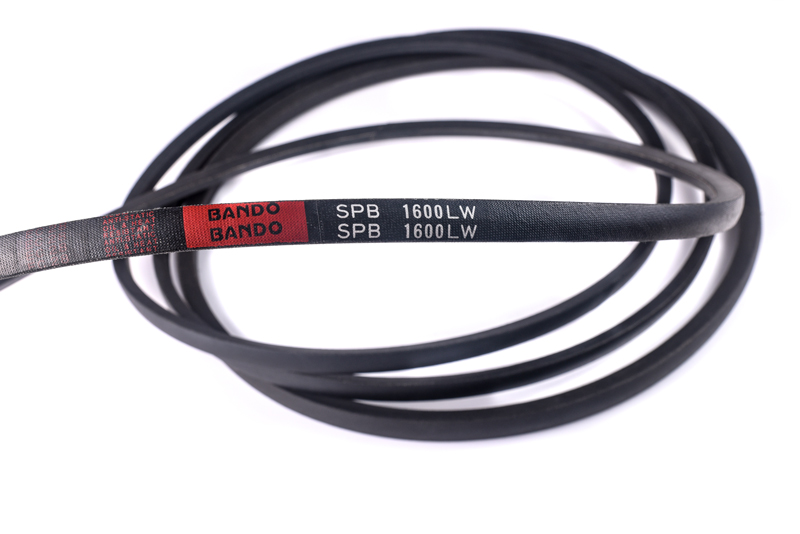

Description

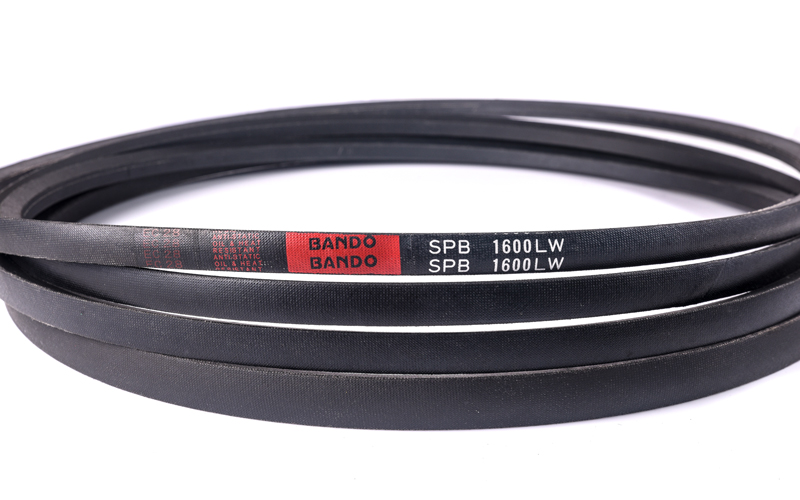

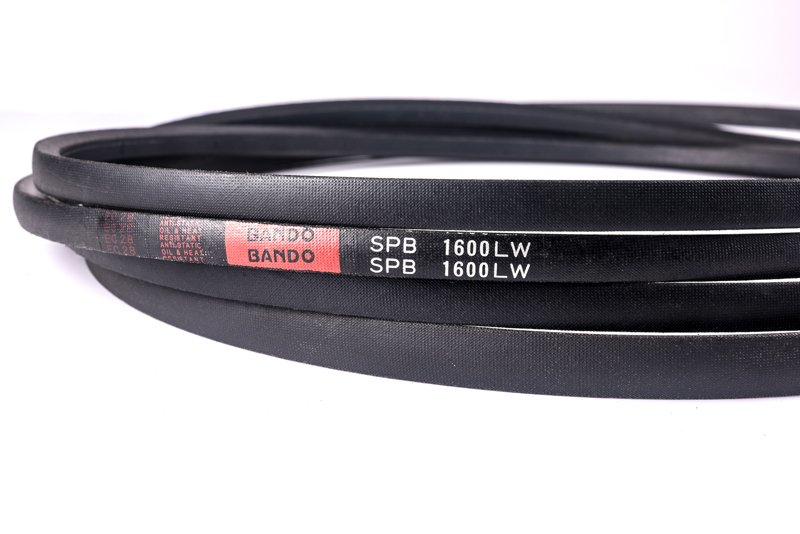

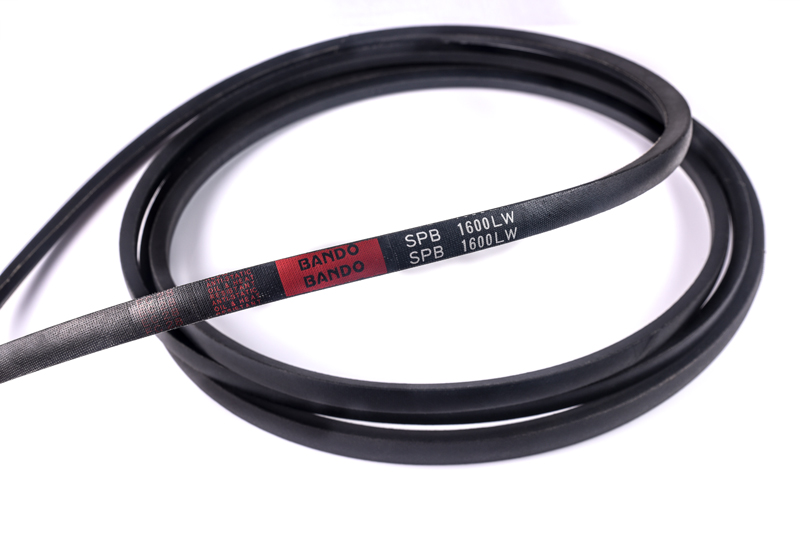

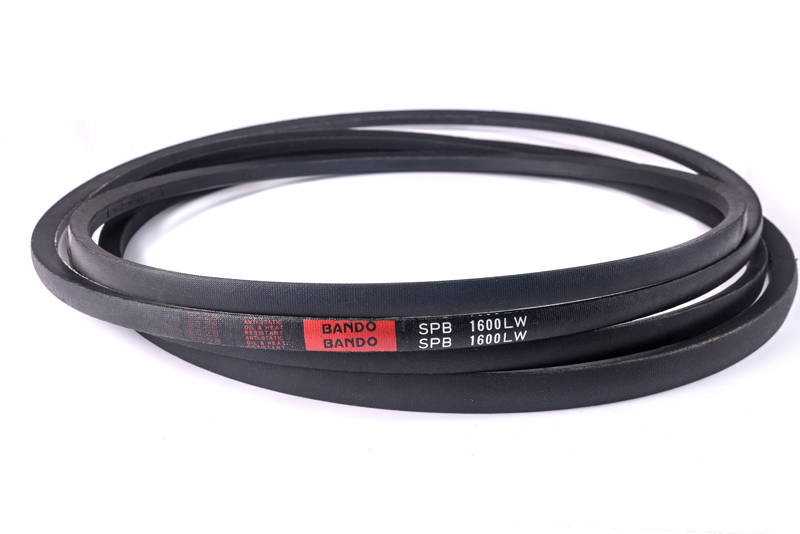

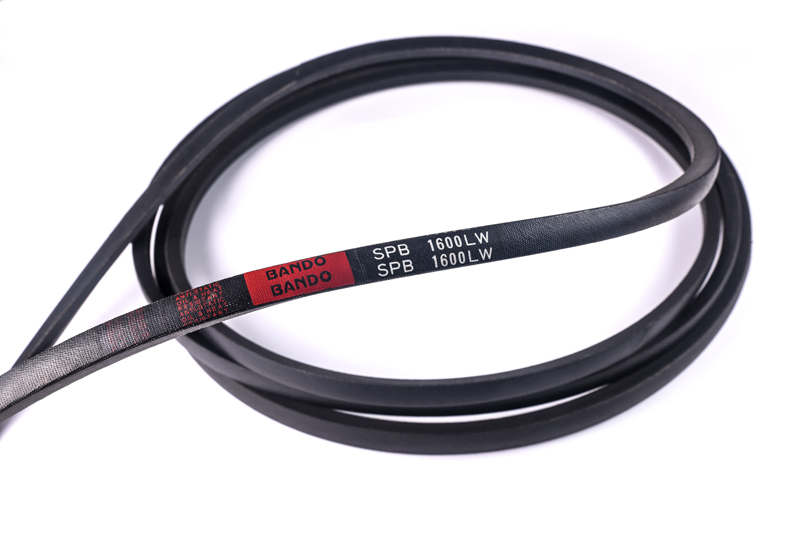

NARROW BELT

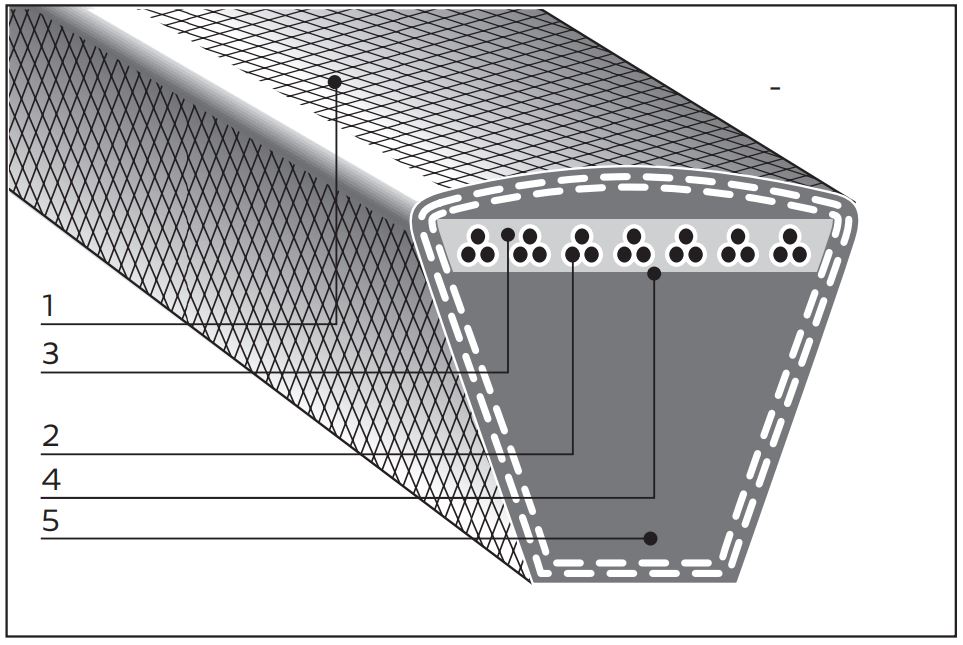

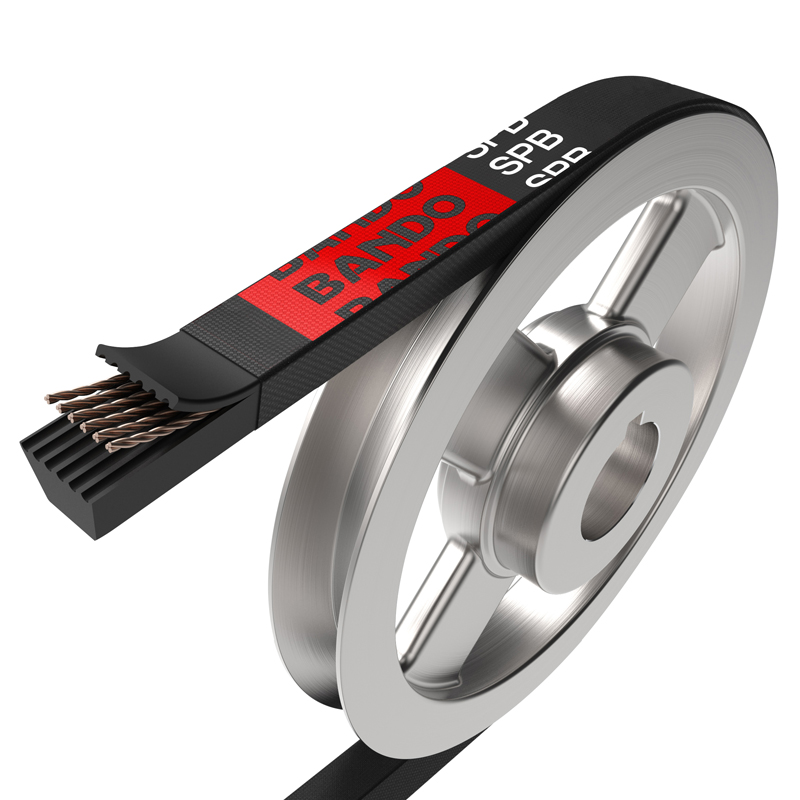

Construction
1. Rubber impregnated canvas
2. Polyester tensile members
3. Chloroprene insulation rubber
4. Special lateral reinforcing cord
5. Chloroprene compression rubber
Features
■ High horsepower rating Requires about 1/3 of the space needed by traditional multiple V-Belt drives
■ Long life
■ High heat and oil resistance
■ Length stability. A matched set of Bando Narrow V-Belts for multiple belt drives retains superior uniformity under tension. a Bando matched set remains perfectly matched even after long periods of storage.
■ Compared with conventional V-Belts. Bando Narrow V-Belts are can handle high loads.

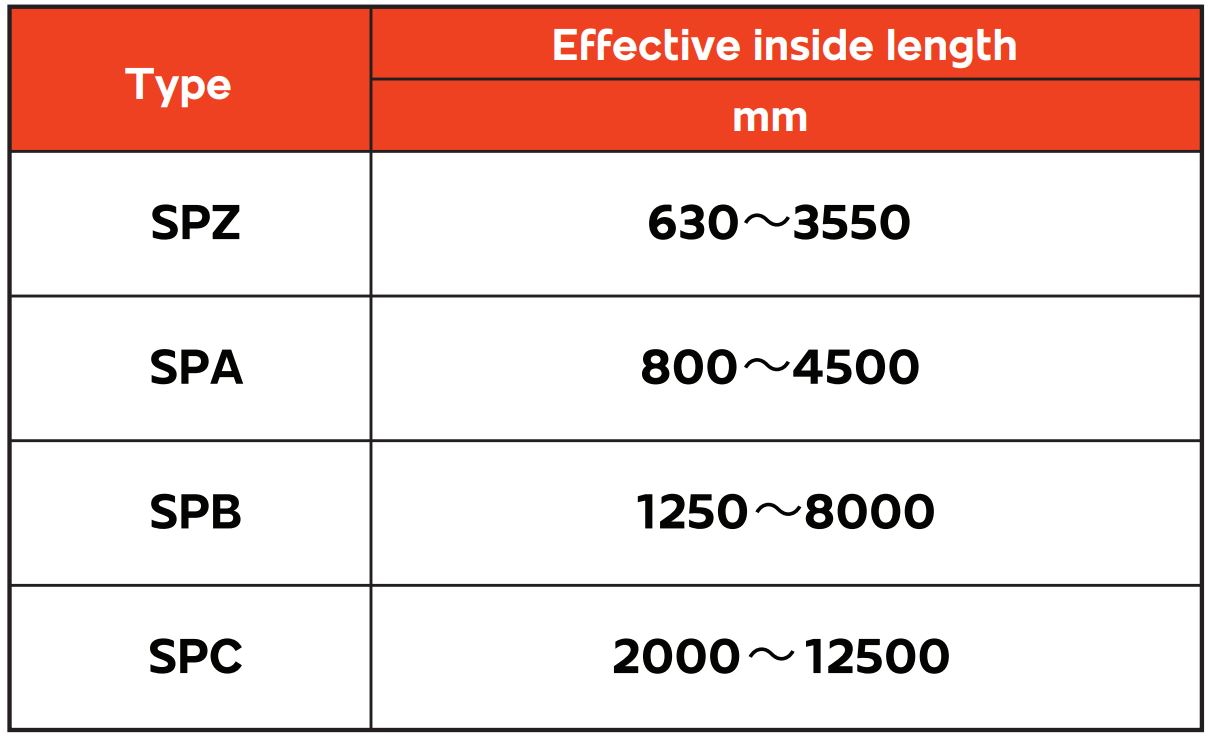

Standard sizes

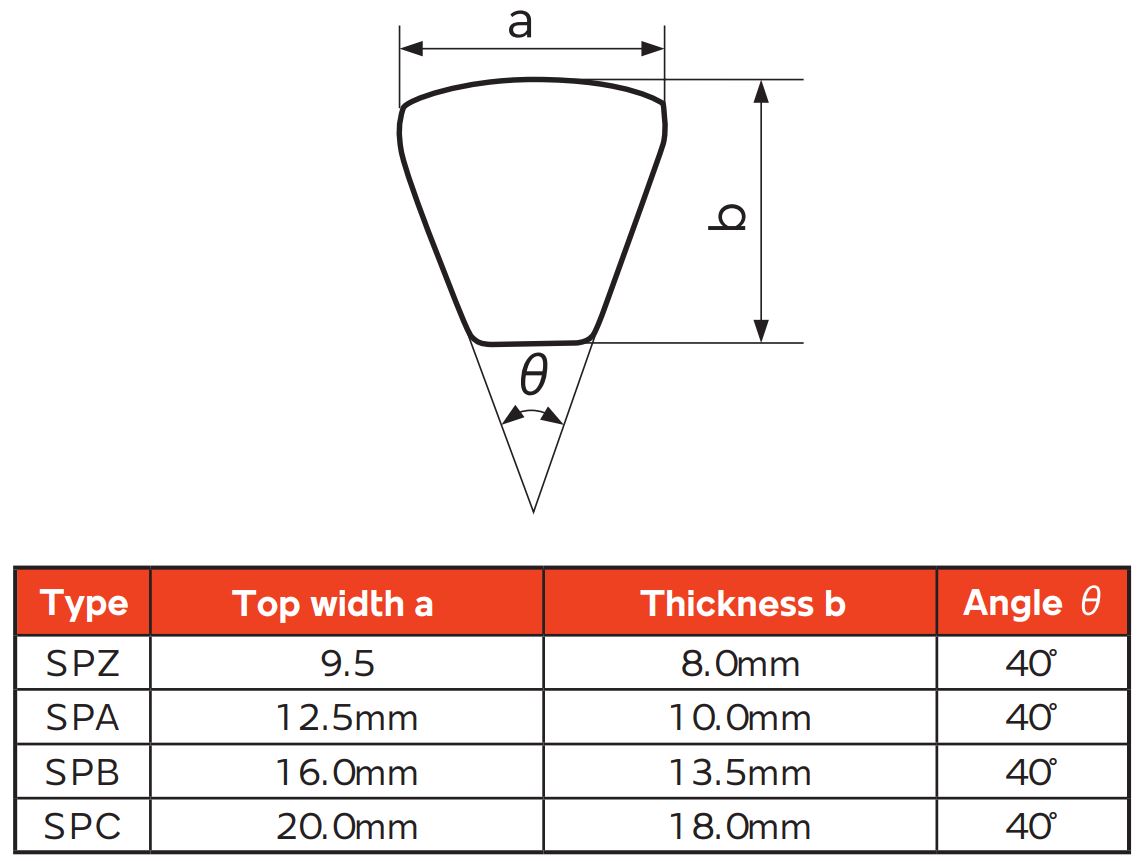

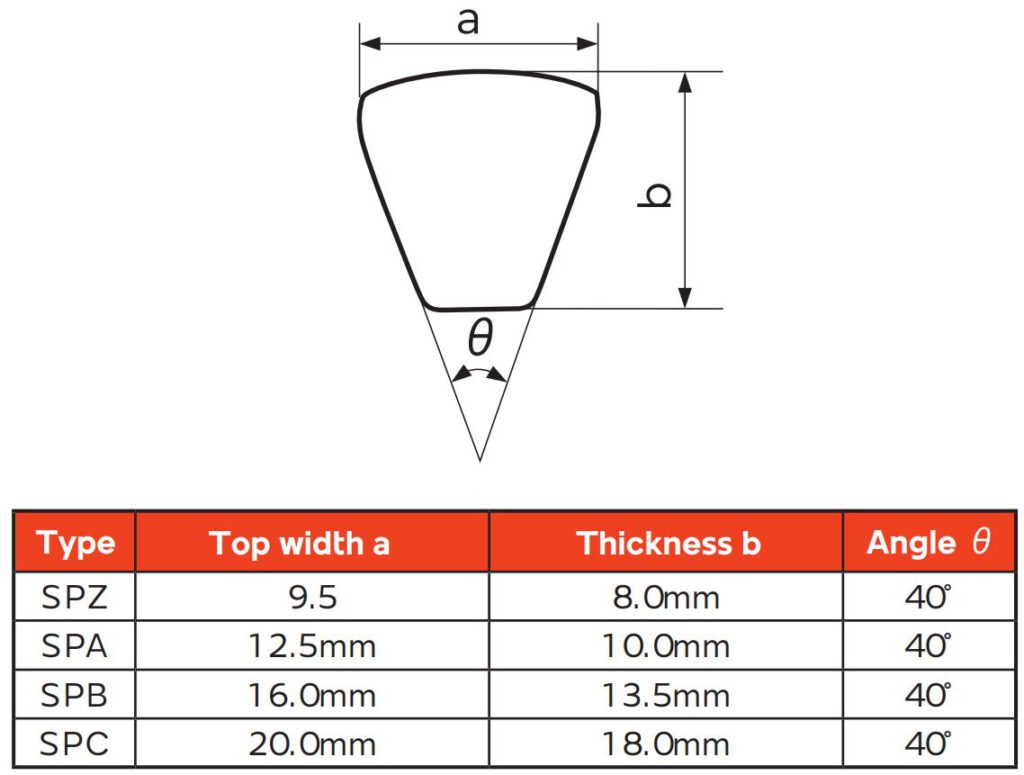

Dimensions

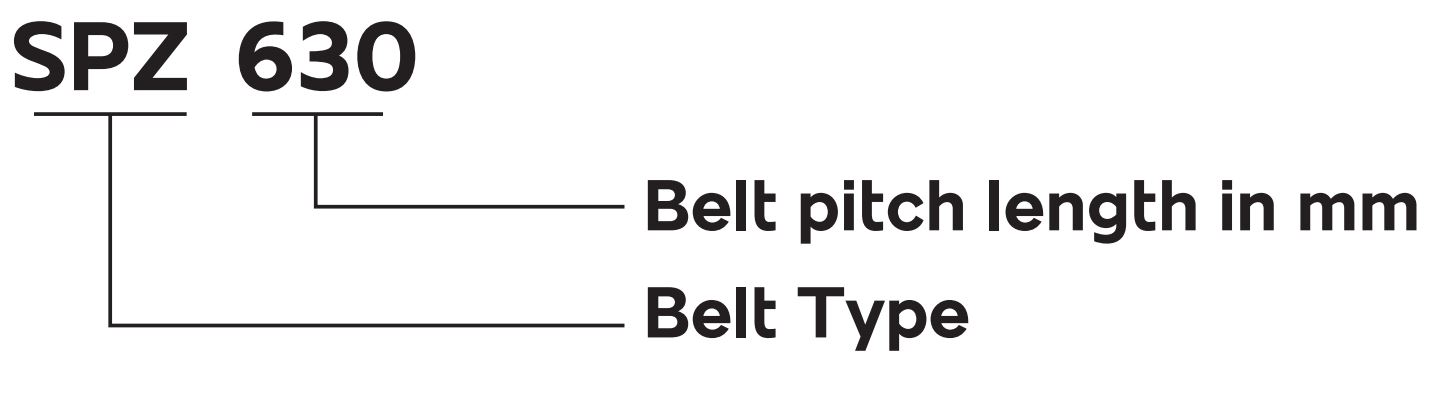

Size Mark
Pulley
Use RMA Engineering Standards recommended pulley groove dimensions,
IP-22 (Specifications for drives using narrow multiple V-Belts)
