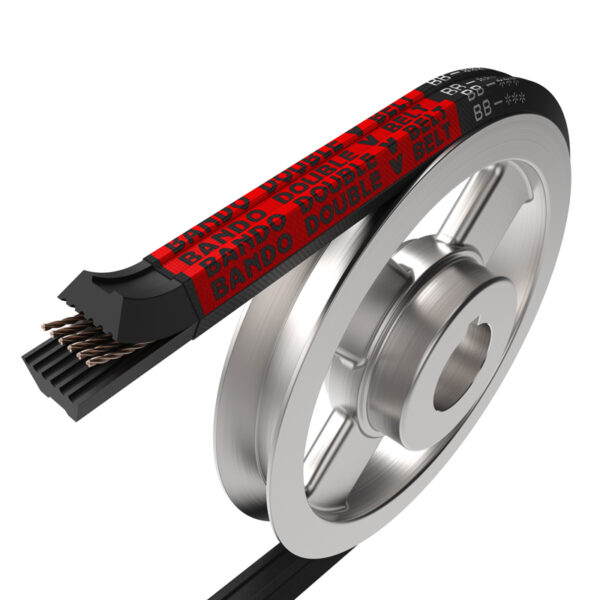

DOUBLE SIDE V BELT

Headquarters: +66 34-468-410-4
Sales and Marketing: +66 2136-4802

Type	Top Width (a)	Thickness (b)	Angle
AA	12.5 mm	10.3 mm	40 ํ
BB	16.5 mm	13.5 mm	40 ํ
CC	22.0 mm	18.0 mm	40 ํ

Material	Rubber
Cord	Polyester
Temperature range	– 30 – 90 ํC

Request more information

Catalog download

Description

Description

DOUBLE SIDE V BELT

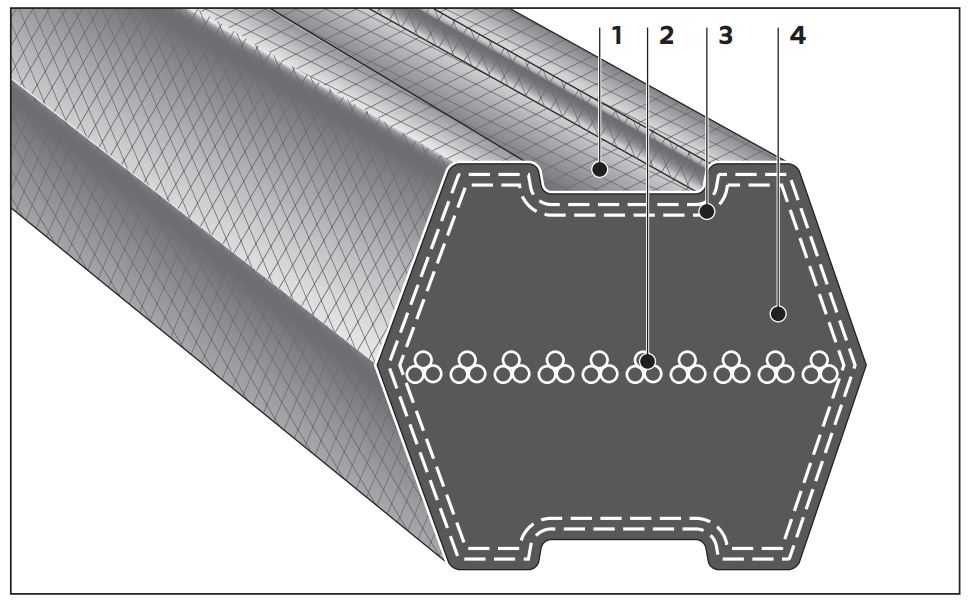

Construction

1. Rubber impregnated special woven canvas
2. Polyester tensile members
3. Chloroprene insulation rubber
4. Chloroprene compression rubber

Features + Benefits

Designed for reverse-bend serpentine drives by covering the belt with special woven fabric.
New cross section for maintaining proper belt position in pulley groove even in the case of extreme reverse bend drives.
Due to greater flexibility created by the special woven fabric as well as the new cross section, service life has increased by about 40% over that of traditional.

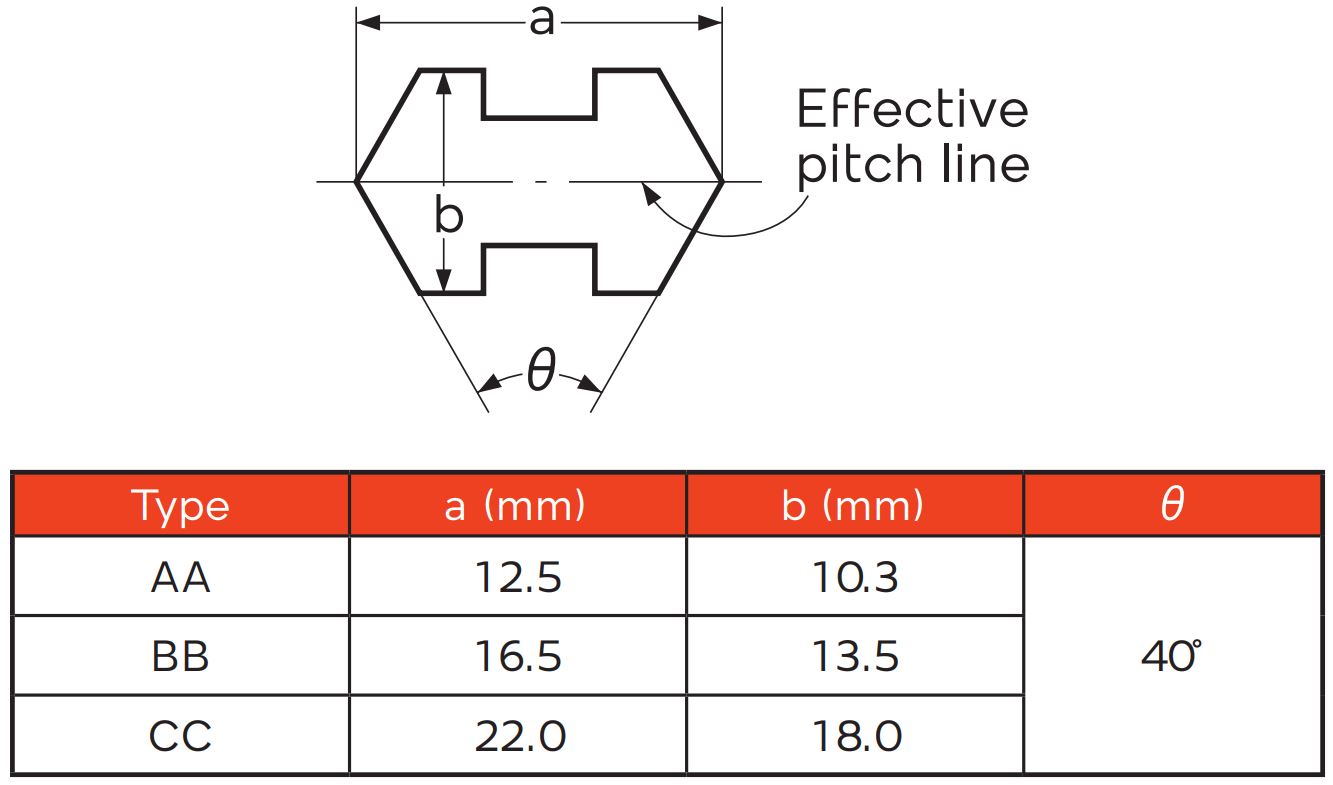

Dimensions

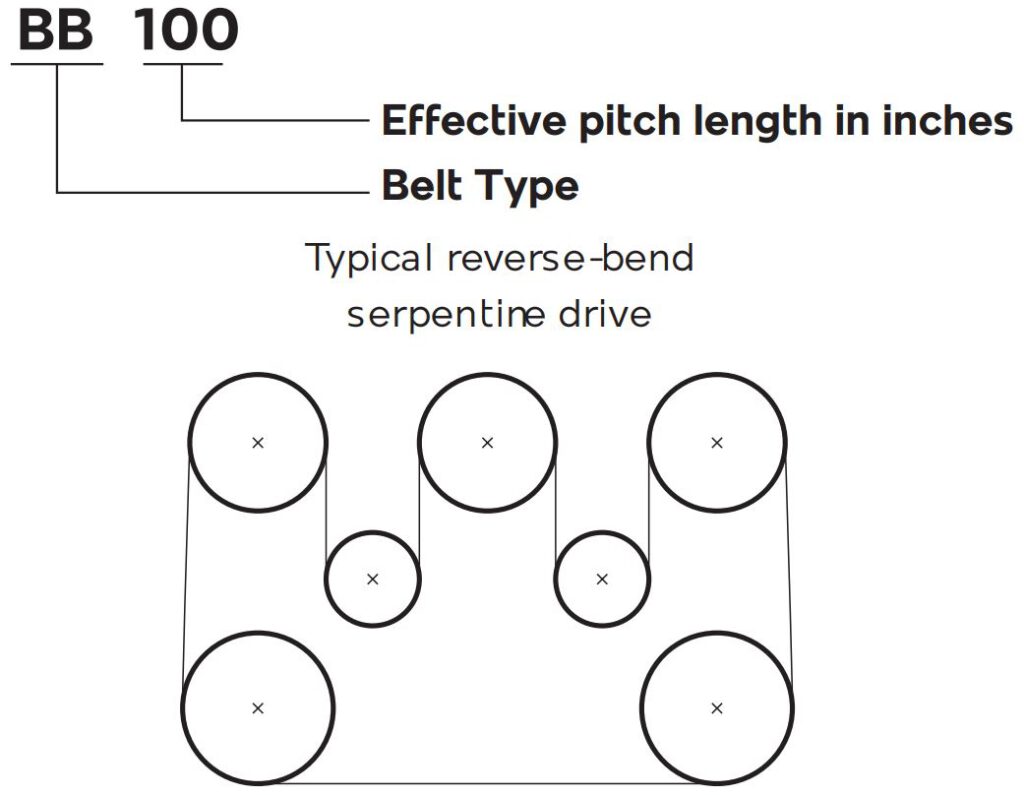

Size mark

Standard sizes
