Description

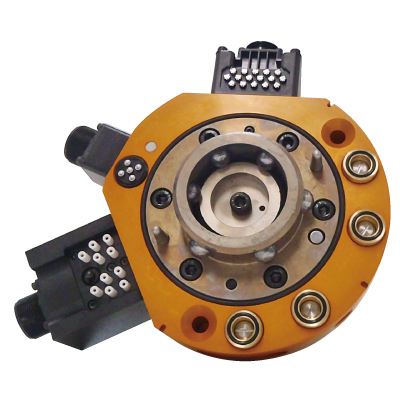

Features of Flex-100B
-
Heavy duty applications
For heavy duty applications, such as deburring, a special seal prevents dust from entering the locking mechanism and electrical contacts when the plates are coupled.
-
Self-sealing pneumatic ports
There are six pneumatic ports in the Master plate (Rc3/8) . Four of the six ports are self-sealing, which automatically shut off air pressure when uncoupled and allow for easier air control in the system.
-
Large misalignment correction capability
The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

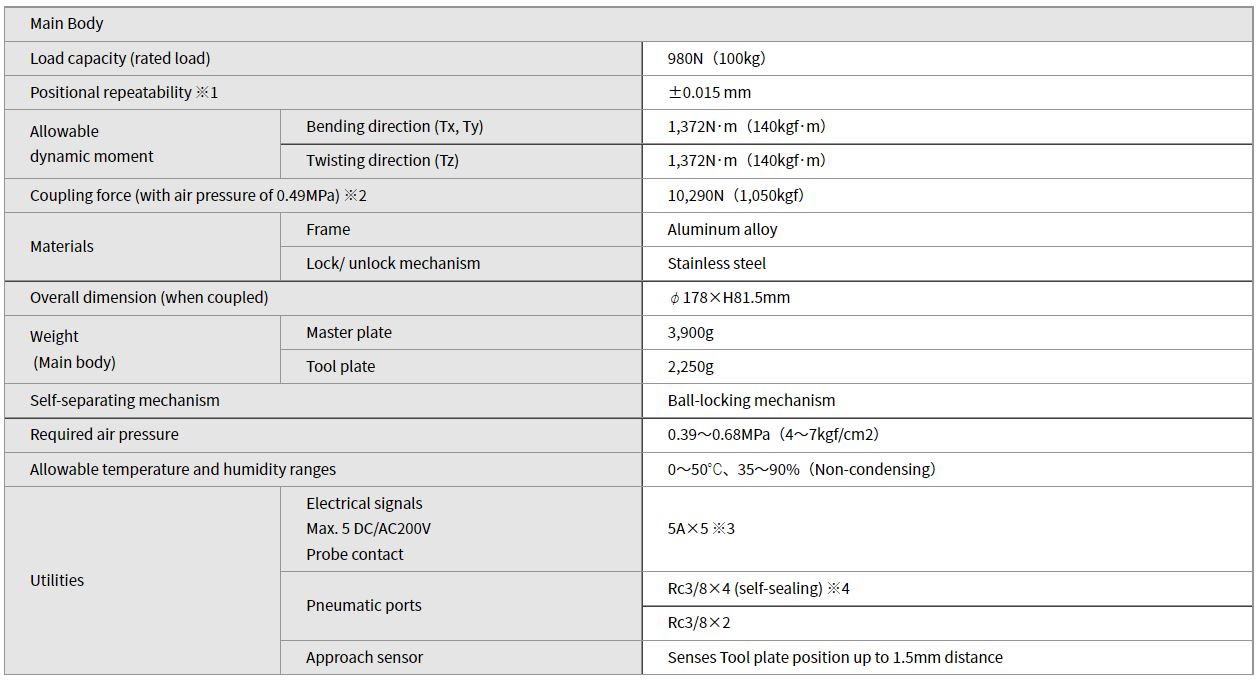

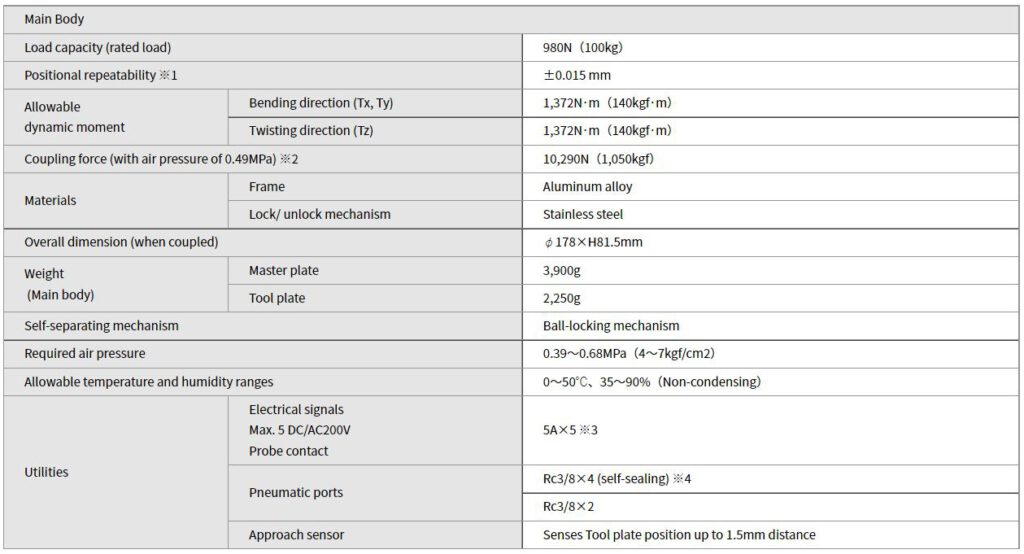

Specifications

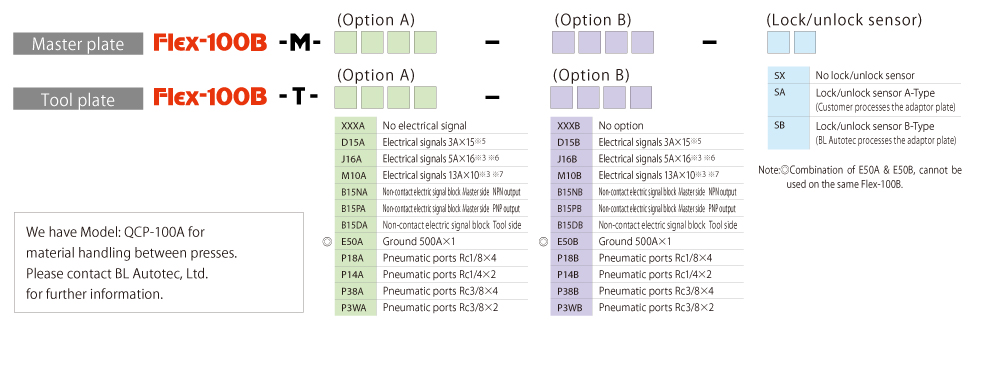

Ordering Information

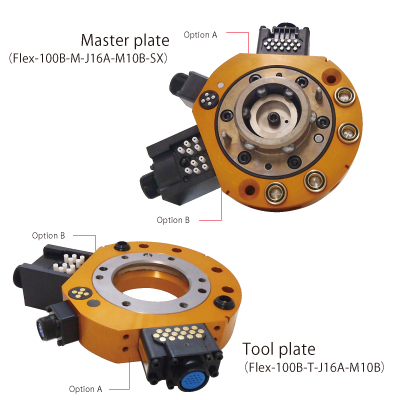

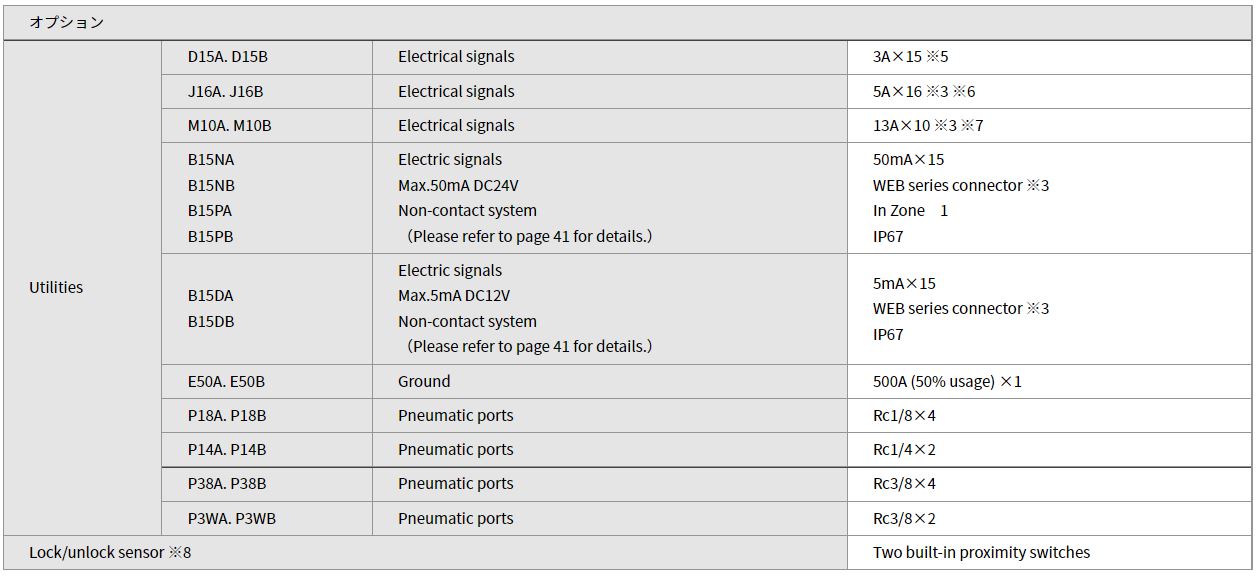

Option
- Electrical signal contact block
Load capacity：100kg(980N)Flex-100-M(T)-D15A,D15B
- Non-contact electric signal block
Load capacity：100kg(980N)Flex-100-M(T)-B15NA_B,B15PA_B,B15DA_B
- Ground
Load capacity：100kg(980N)Flex-100B-M(T)-E50A,E50B
- Pneumatic ports
Load capacity：100kg(980N)Flex-100B-M(T)-P18A,P18B
Load capacity：100kg(980N)Flex-100B-M(T)-P14A,P14B
Load capacity：100kg(980N)Flex-100B-M(T)-P38A,P38B
Load capacity：100kg(980N)Flex-100B-M(T)-P3WA,P3WB
- Lock/unlock sensor
Load capacity：100kg(980N)Flex-100B-M-SA,SB
