Description

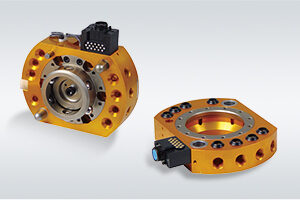

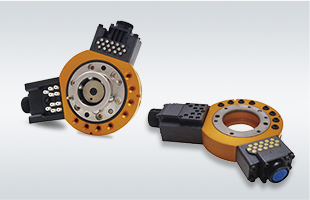

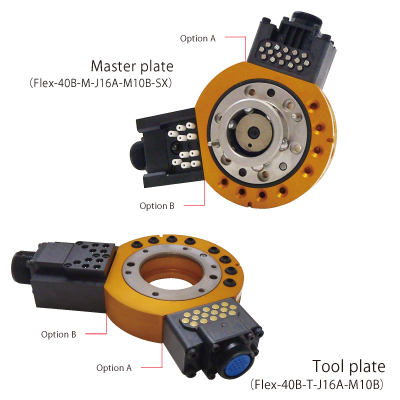

Features of Flex-40B
-
Various Range of Utilities
The system can be structured to meet individual customer applications by varying the size and number of electrical contacts and pneumatic ports.
-
Lock without touching

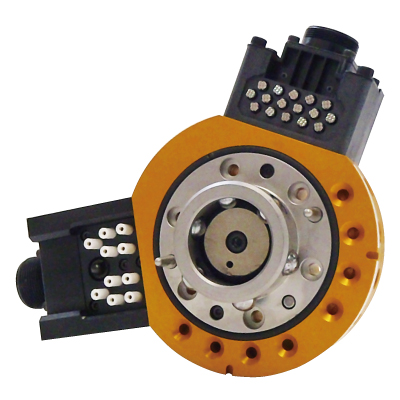

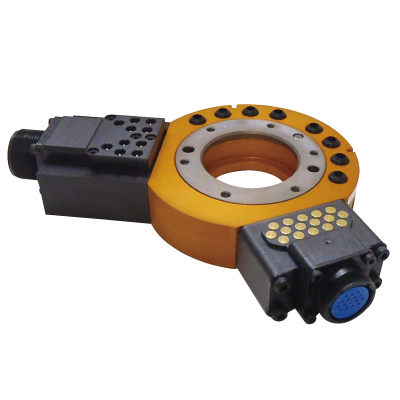

The Master plate can lock onto the Tool plate with a gap between them.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature witch does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

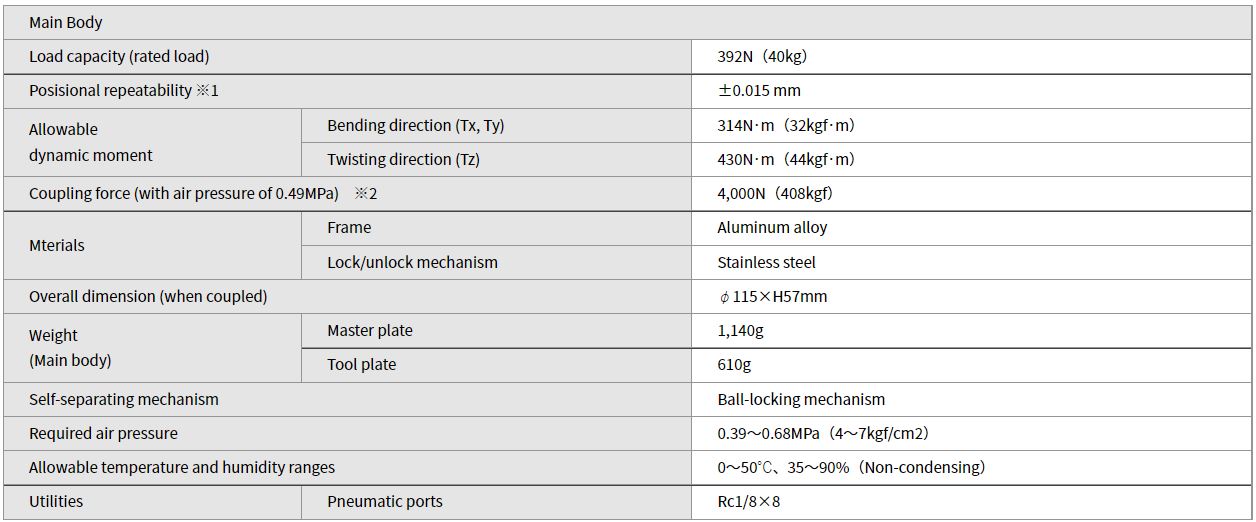

Specifications

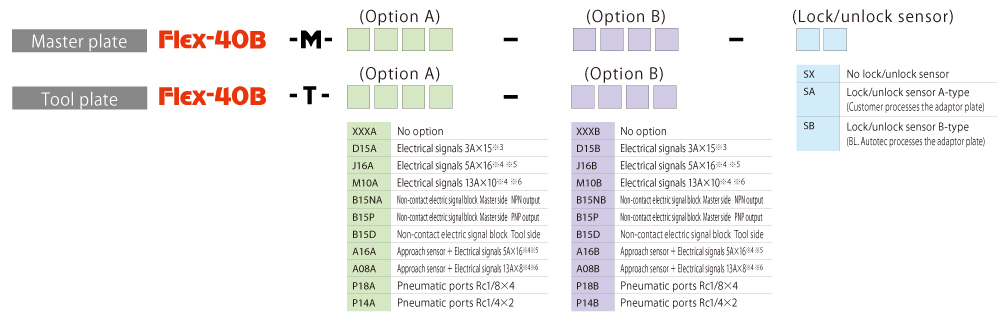

Ordering Information

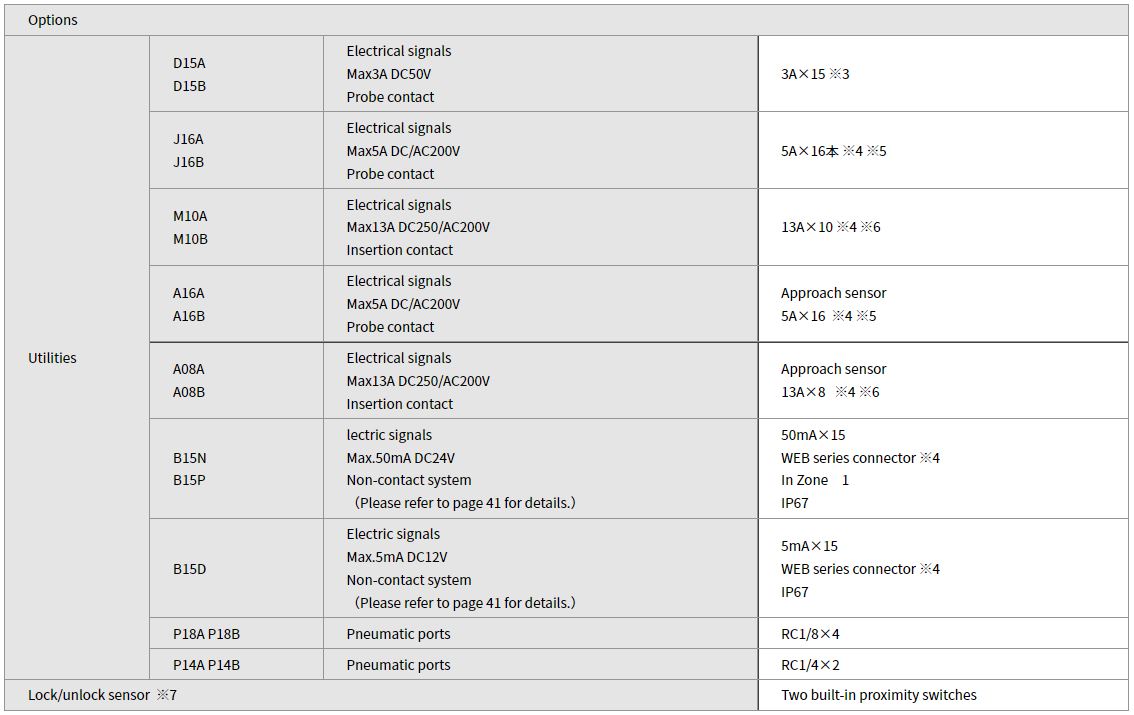

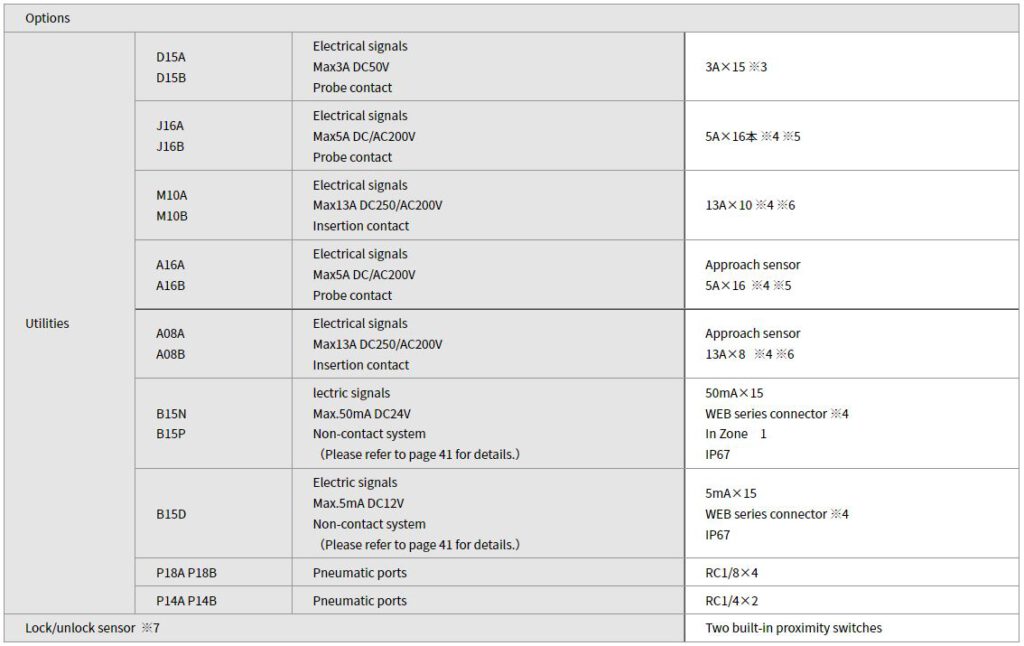

Option
- Electrical signal contact block
3A×15 D-sub 15 contacts Flex-40B-M(T)-D15A,D15B
3A×15 D-sub 15 contacts Flex-40B-M(T)-J16A,J16B
3A×15 D-sub 15 contacts Flex-40B-M10A,M10B
3A×15 D-sub 15 contacts Flex-40B-M(T)-A16A,A16B
3A×15 D-sub 15 contacts Flex-40B-M(T)-A08A,A08B
- Non-contact electric signal block
3A×15 D-sub 15 contacts Flex-40B-M(T)-B15NA_B,B15PA_B(Master side only),B15DA_B(Tool side only)
- Pneumatic ports
3A×15 D-sub 15 contacts Flex-40B-M(T)-P18A,P18B
3A×15 D-sub 15 contacts Flex-40B-M(T)-P14A,P14B
- Lock/unlock sensor
3A×15 D-sub 15 contacts Flex-40B-M(T)-SA,SB
