Description

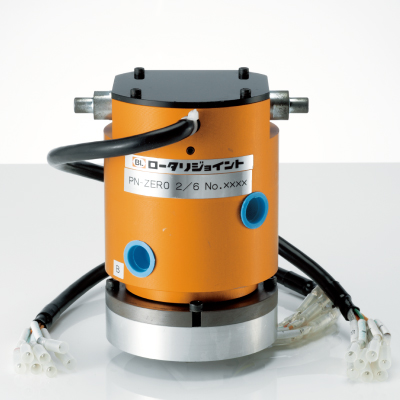

Features of ROTARY JOINT PN-ZERO Series
-
Features
- Equipped with both electrical signal contacts and pneumatic port utilities
- Lightweight and compact body
- 360 degree endless rotation (Rated 50rpm)
- Supports three wire-saving models (DeviceNet, Uni-wire, CC-Link) and four analog signal models (6, 12, 24 and 36 electrical wires)
- CC-Link Partner Association approval (PN-ZERO 2/C-4)
- 導入メリット
- 回転方向、角度の制限が無くなり、基準点へ戻すことなく生産の効率化が図れます。
- 断線や配管破れ等のトラブルが無くなり、生産停止の問題解消、メンテナンスに要するコスト、時間の無駄を省けます。
-
Uses

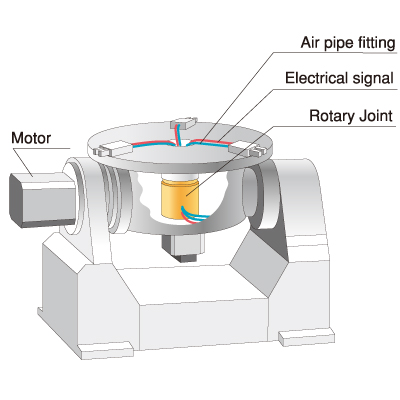

- Positioner turntable shafts
- Shafts for plural jigs by vertical and lateral rotation method
- Other forward/reverse rotation device shafts

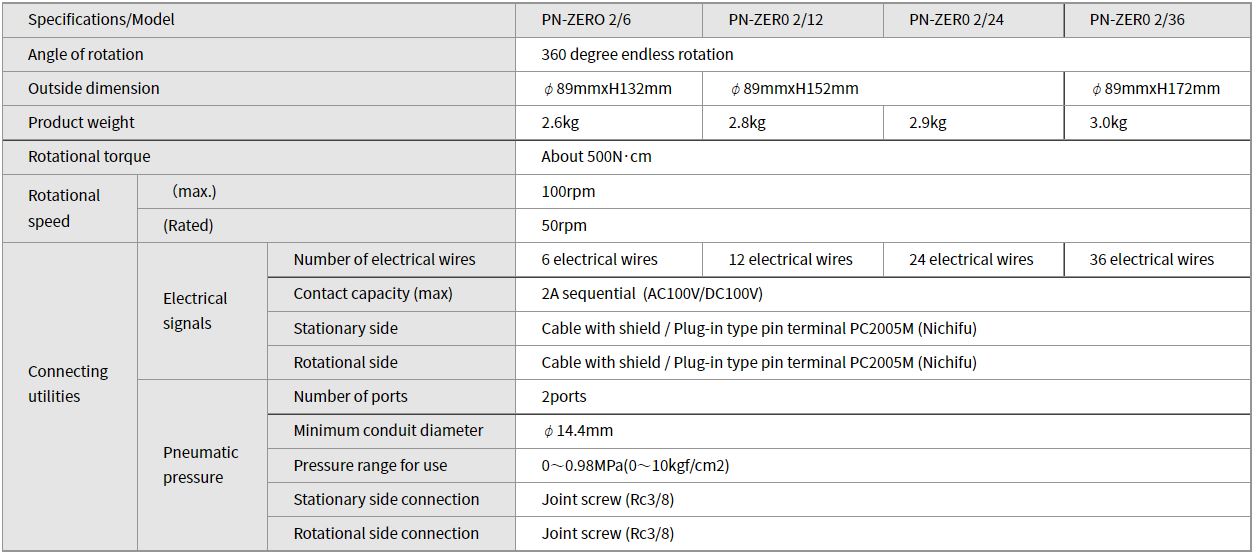

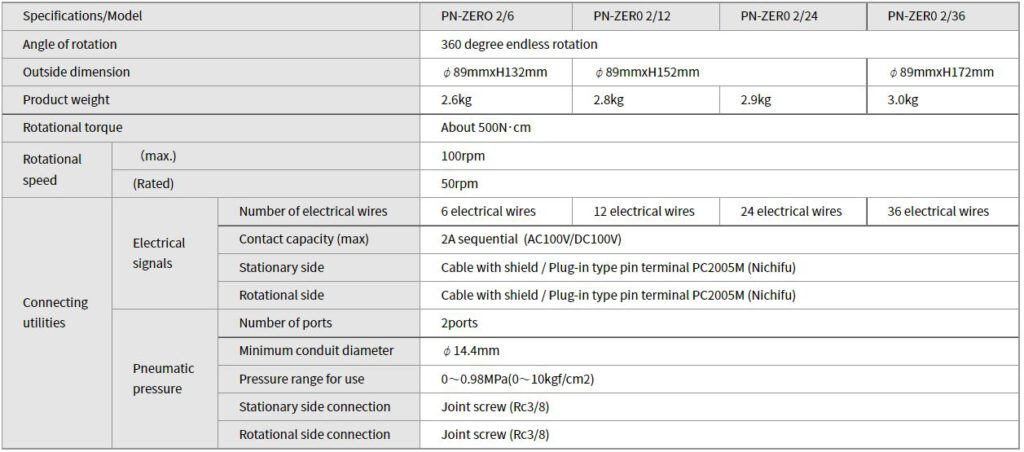

- Main specifications
