Description

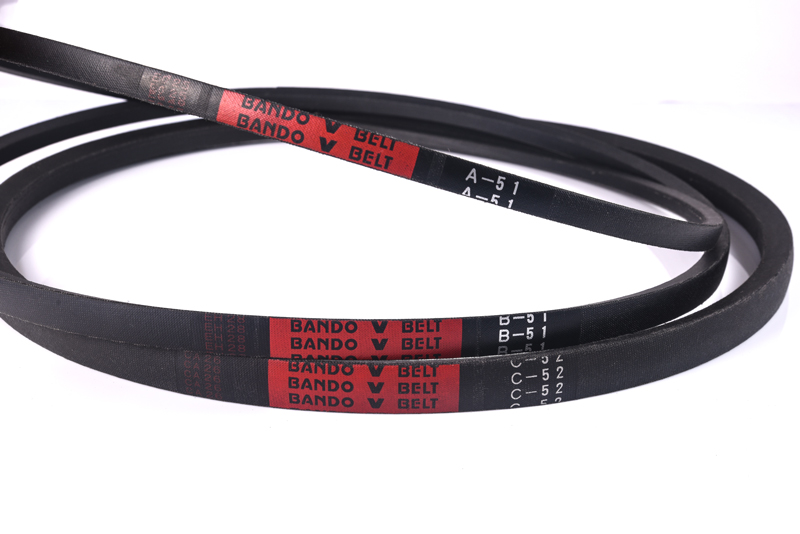

V-BELT RED

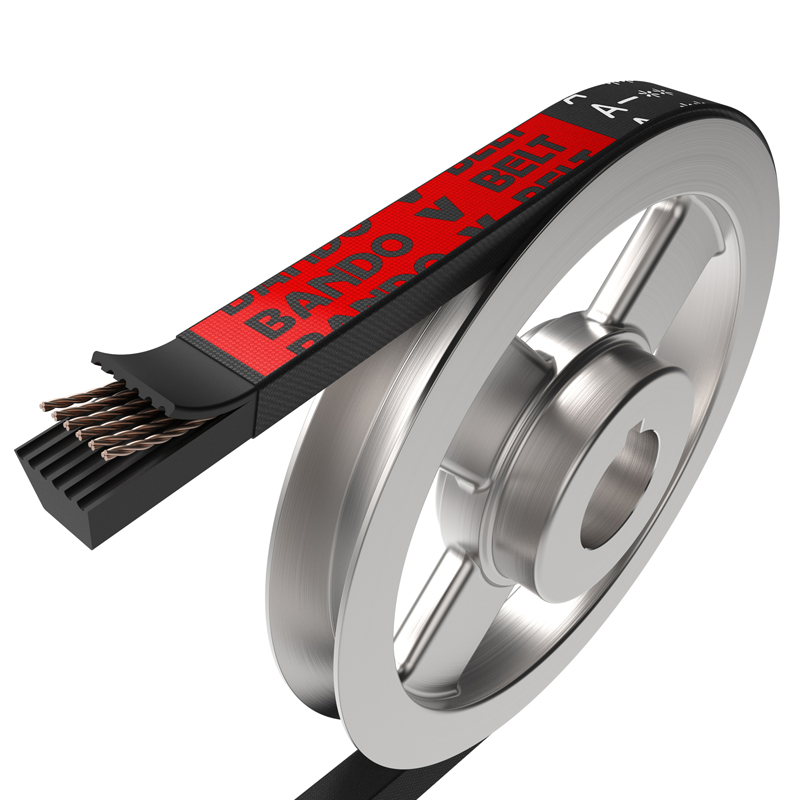

Structure
- Cover fabric
The cover fabric has a sufficient abrasion resistance to friction with the pulleys and is made of a strong, elastic, and bias special cloth. The further reinforcement with the abrasion-resistant rubber protects the inside sufficient - Compression rubber
It keeps the normal belt cross-sectional profile, has extremely little heat generation against bending, and is very flexible. - Adhesion rubber
While it maintains the cord layer at an appropriate position, it also improves the adhesion between the cord layer and the rubber layer. - Cord
It is the main part that transmits power and uses a polyester cord that has a high strength, has little elongation, and has little flex fatigue. It strongly adheres to and is integrated with the rubber layer; hence, in power transmission, each cord receives uniform force and can perform stable power transmission.
Features
- High-quality and high-power-transmission V-belt
It employs polyester cords that are strong and have little elongation and a synthetic rubber compound, and has about 60% higher power than the previous Standard.

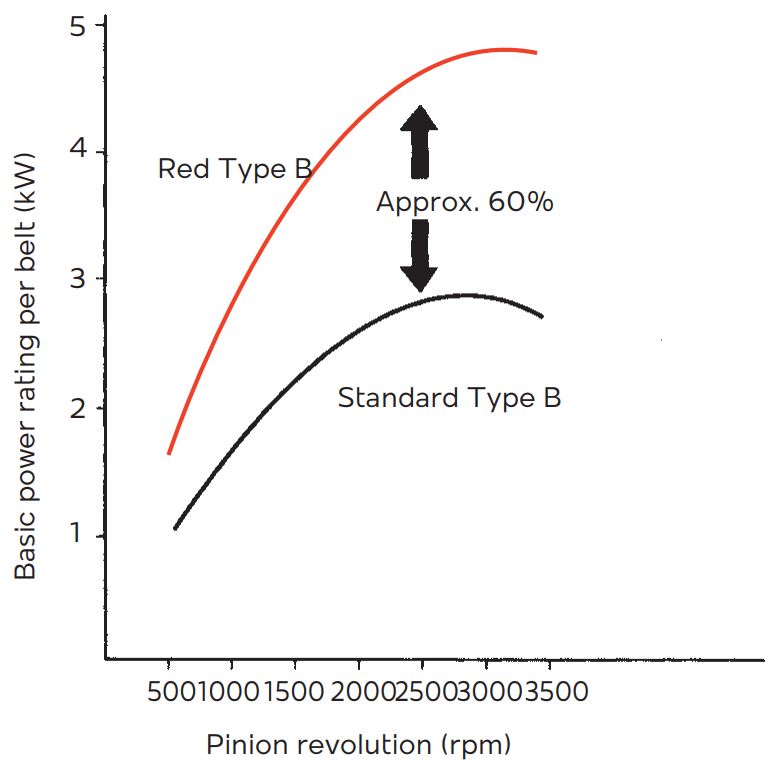

This graph plots the transmission power per belt as com pared to revolution when a Type-B 125-mm-dia. pulley is used.
- Excellent heat resistance

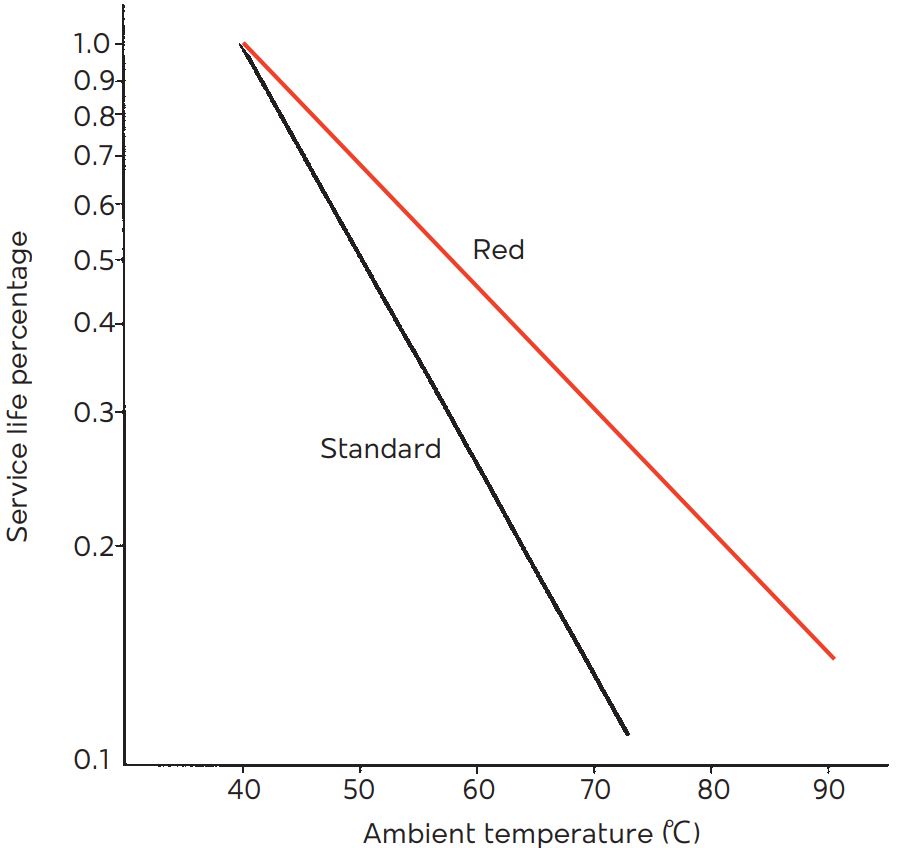

Generally, when the ambient temperature increases, the belt service life decreases as shown in the graph below. However, Bando Green has a lower reduction rate than Standard; hence, when the ambient temperature is high (normally 60 ° C or more), it is recommended to use Bando Red.
- Excellent flame resistance
Because it does not have a self-burning property, the risk of ignition due to excessive slipping is low.
