| Type | Top Width (a) | Thickness (b) | Angle | Size Range |
| 3V | 9.5 mm (0.38”) | 8.0 mm (0.32”) | 40 ํ | Please download catalog |
| 5V | 16.0 mm (0.62”) | 13.5 mm (0.54.”) | 40 ํ | |
| 8V | 25.5 mm (1.0”) | 23.0 mm (0.88”) | 40 ํ |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
| Type | Top Width | Thickness | Size Range |
| M | 10.00 mm | 5.5 mm | Please download catalog |
| A | 12.7 mm | 8 mm | |
| B | 16.7 mm | 10.3 mm | |
| C | 22.2 mm | 13.5 mm | |
| D | 31.7 mm | 19.0 mm | |
| E | 38.0 mm | 23.0 mm |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | -40 – 70 ํC |
| P | H | h | a | |
| mm | mm | mm | ( ํ ) | |
| 3PK-16PK | 3.56 | 4.3 mm | 2.0 mm | 40 |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
| Type | Top Width (a) | Thickness (b) | Angle |
| SB | 12.7 mm (0.5”) | 7.0 mm (0.27”) | 40 ํ |
| Material | |
| Cord | |
| Temperature range |
Master plate Attachments
・4 bolts（M4×30）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

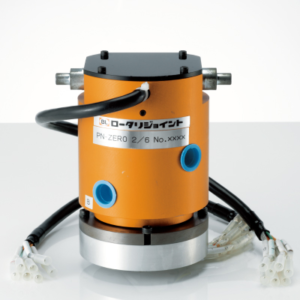

ROTARY JOINT PN-ZERO Series
PN-ZERO Series is a rotary joint developed for positioners and turntables. The lightweight and compact body is equipped with electrical signal contacts and pneumatic port utilities. There are no restrictions on the angle of rotation, so its endless 360 degree rotation eliminates problems associated with electrical wire wrapping and pneumatic pipe fittings. Please select a model based on the electrical signal contacts and number of contacts needed.
Showing 1–12 of 198 results
