QUICK-CHANGE QC-60D

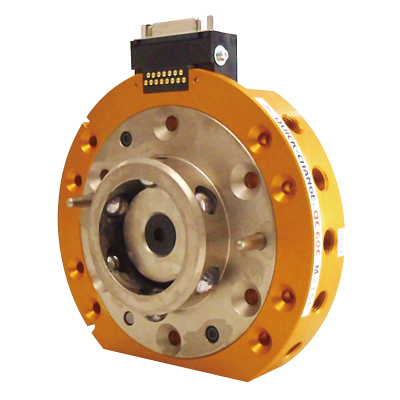

Master plate Attachments

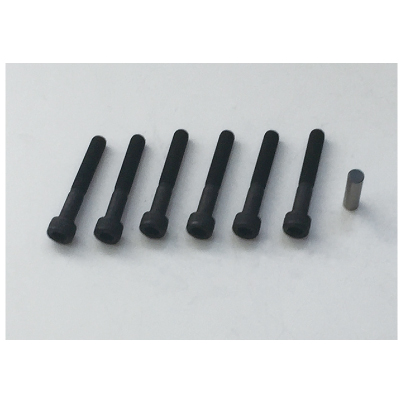

・6 bolts（M6×40)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Request more information

Catalog download

Features of QC-60D

Lock without touching

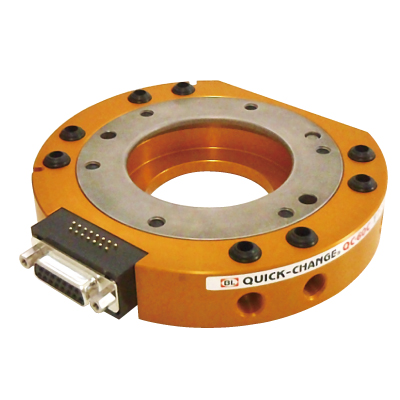

The Master plate can lock onto the Tool plate with a gap between them.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

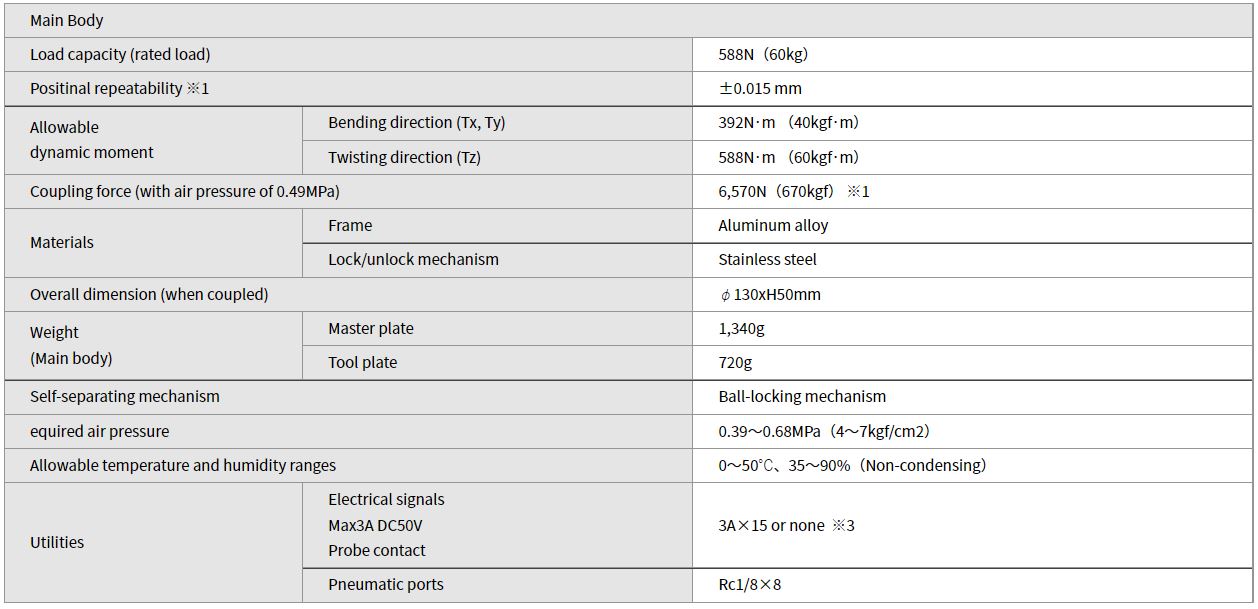

Specifications

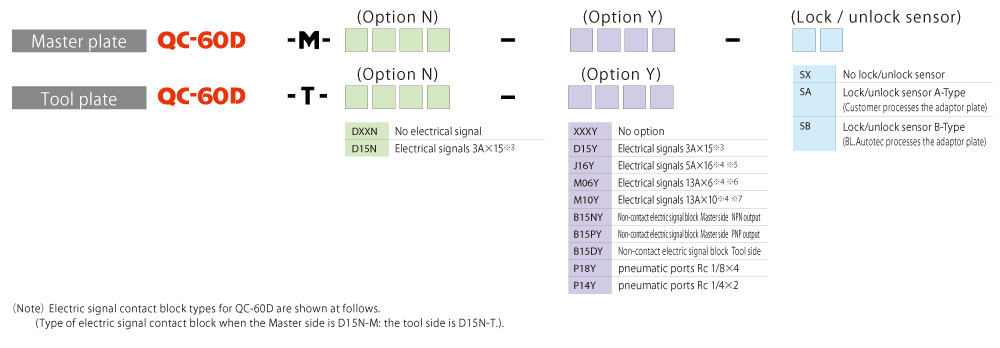

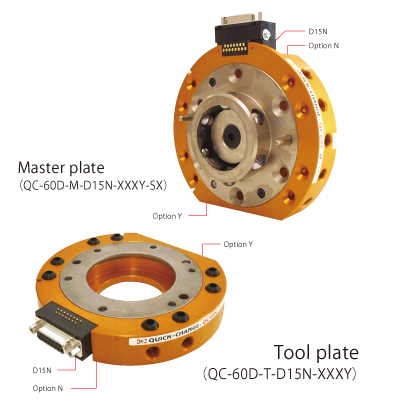

Ordering Information

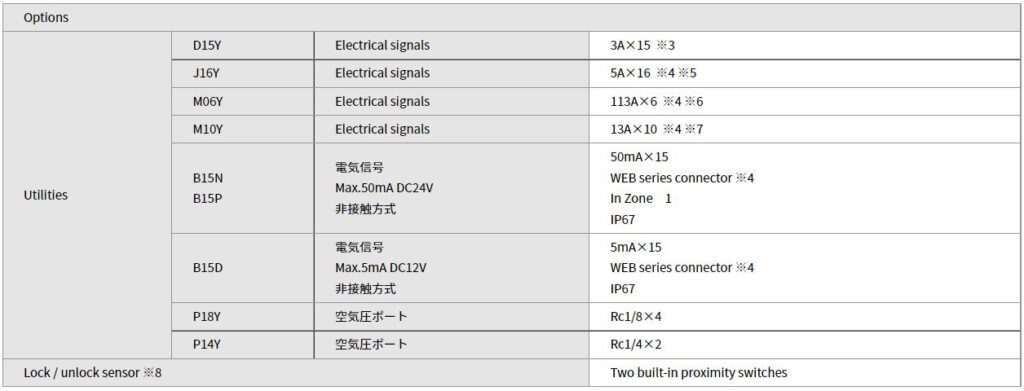

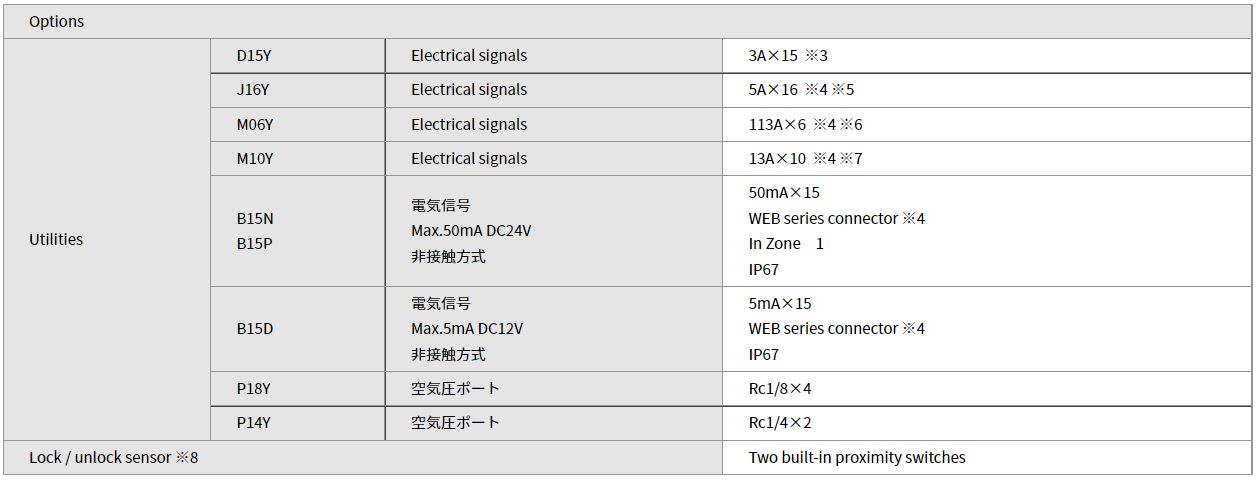

Option

Electrical signal contact block

Load capacity：60kg(588N)QC-60D-M(T)-D15Y

Load capacity：60kg(588N)QC-60D-M(T)-J16Y

Load capacity：60kg(588N)QC-60D-M(T)-M06Y

Load capacity：60kg(588N)QC-60D-M(T)-M10Y
