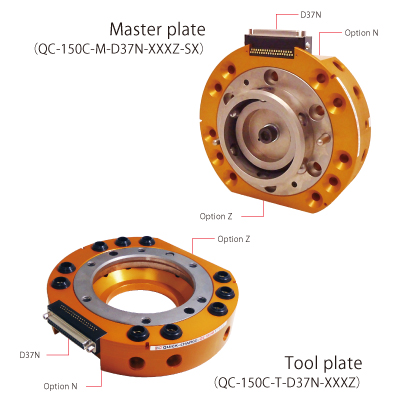

QUICK-CHANGE QC-150C

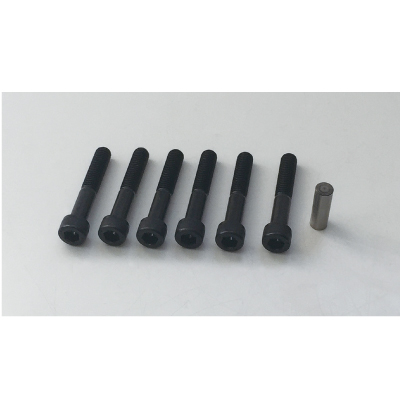

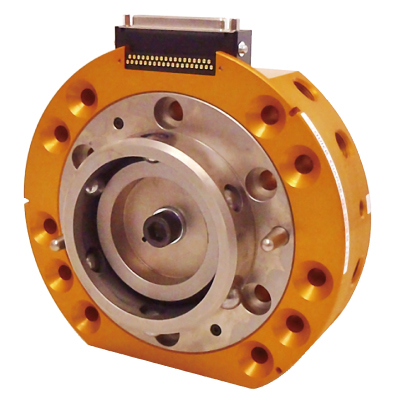

Master plate Attachments

・6 bolts（M10×60）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Request more information

Catalog download

Features of QC-150C

  • Lock without touching

The Master plate can lock onto the Tool plate with a gap between them.

Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple
if the air pressure is shut off.

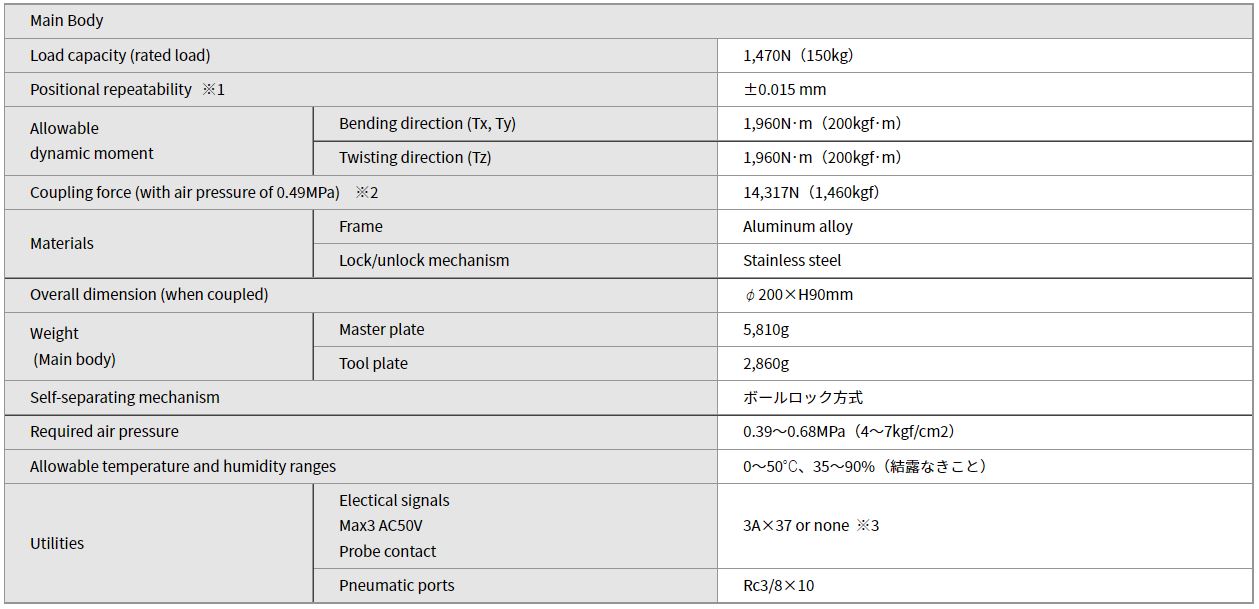

Specifications

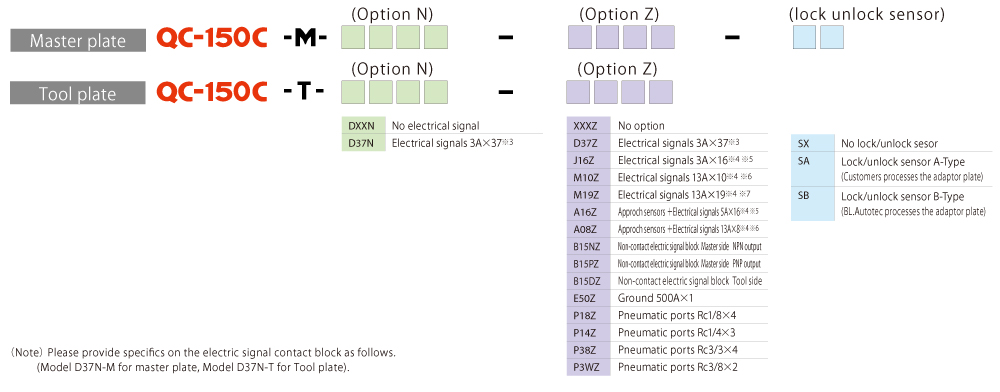

Ordering Information

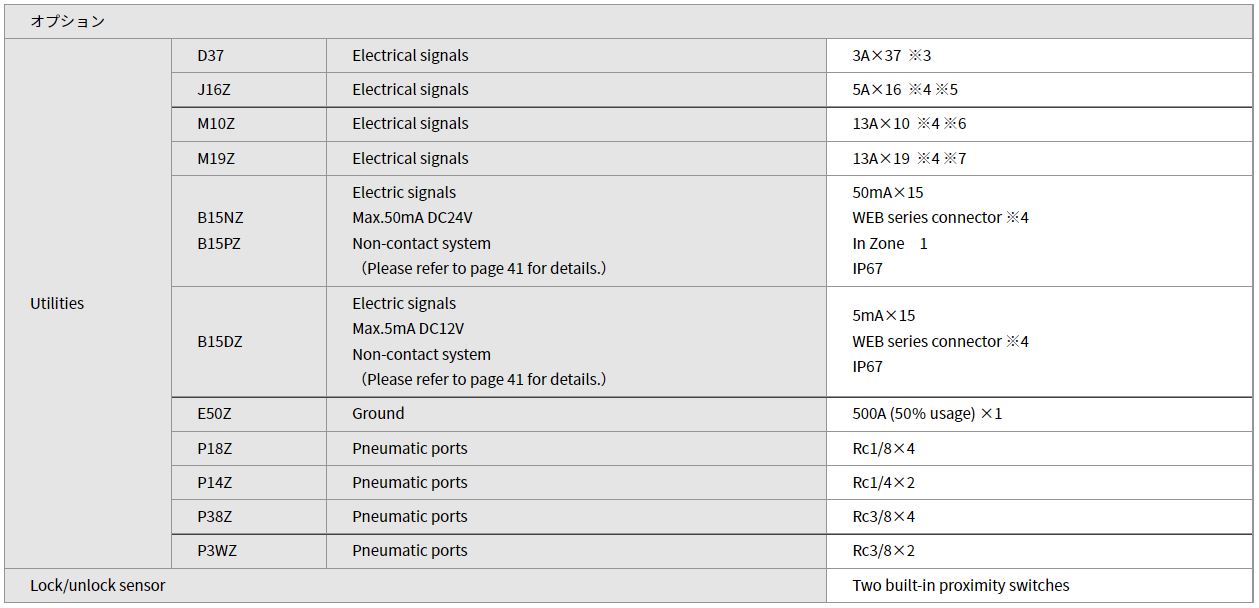

Option

  • Electrical signal contact block

Load capacity：150kg(1,470N)QC-150C-M(T)-D37Z

Load capacity：150kg(1,470N)QC-150C-M(T)-J16Z

Load capacity：150kg(1,470N)QC-150C-M(T)-M10Z

Load capacity：150kg(1,470N)QC-150C-M(T)-M19Z



Load capacity：150kg(1,470N)QC-150C-M(T)-A16Z

  • Load capacity：150kg(1,470N)QC-150C-M(T)-A08Z

  • Non-contact electric signal block

Load capacity：150kg(1,470N)QC-150C-B15NZ,B15PZ,B15DZ

  • Pneumatic ports

Load capacity：150kg(1,470N)QC-150C-M(T)-P18Z

Load capacity：150kg(1,470N)QC-150C-M(T)-P14Z


Load capacity：150kg(1,470N)QC-150C-M(T)-P38Z


Load capacity：150kg(1,470N)QC-150C-M(T)-P3WZ
