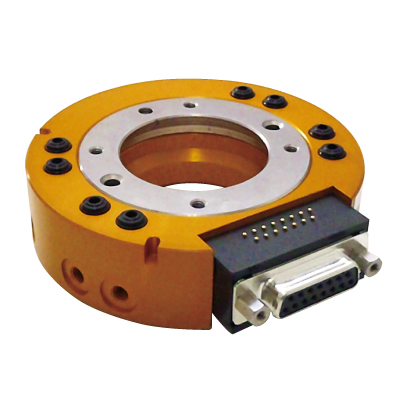

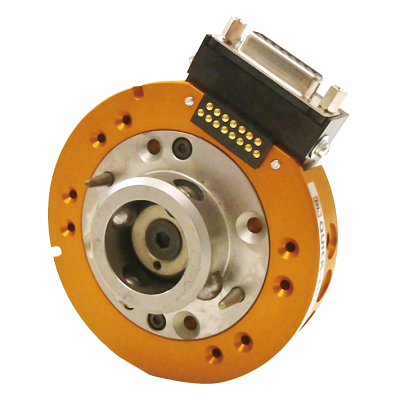

QUICK-CHANGE QC-20D

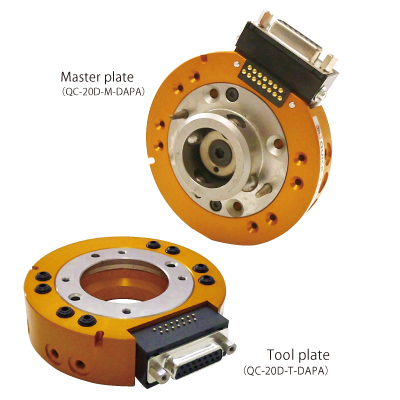

Master plate Attachments

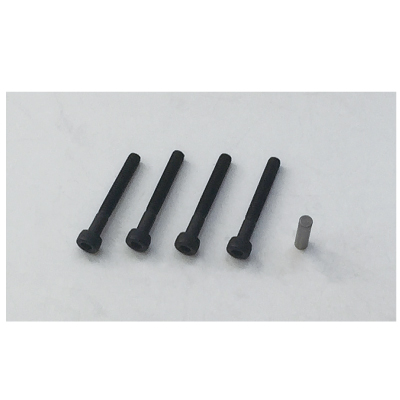

・4 bolts（M4×30）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Request more information

Catalog download

Features of QC-20D

  • Lock without touching

The Master plate can lock onto the Tool plate with a gap between them.

  • Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains  a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple
if the air pressure is shut off.

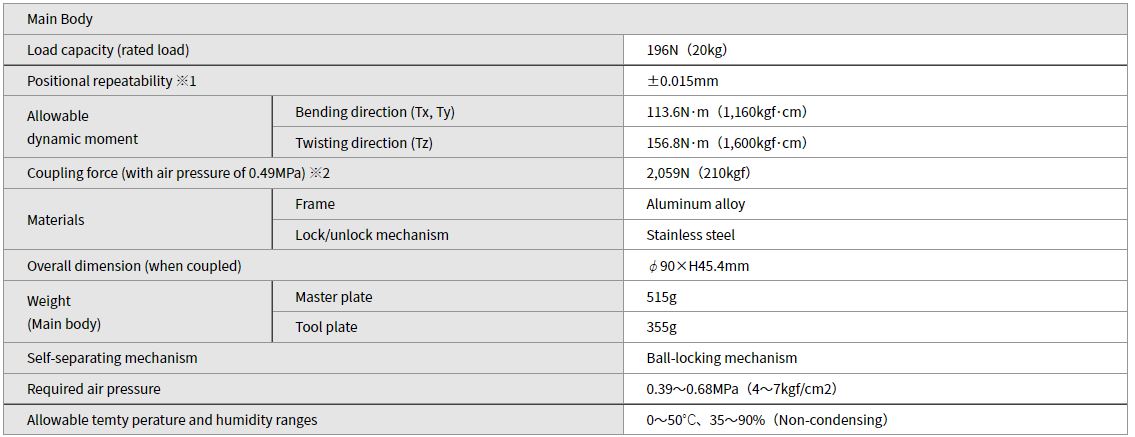

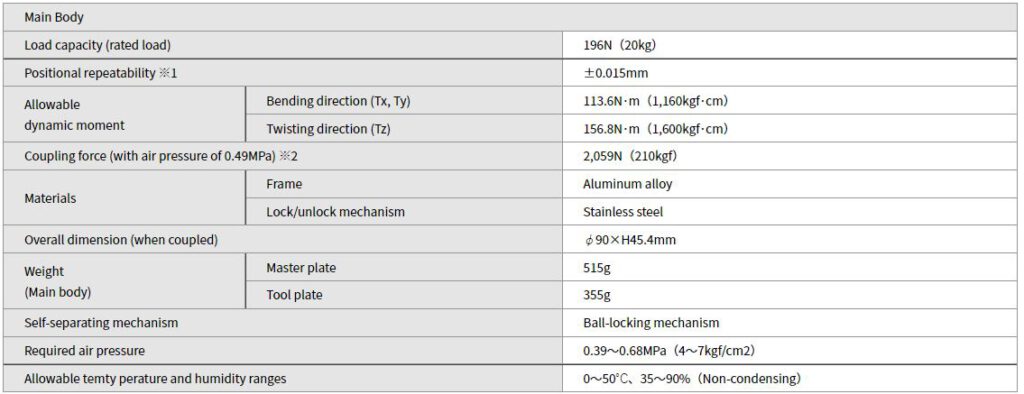

Specifications

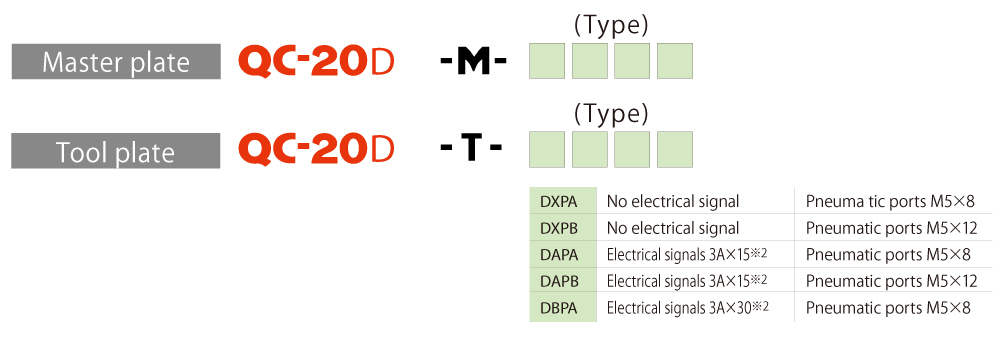

Ordering Information

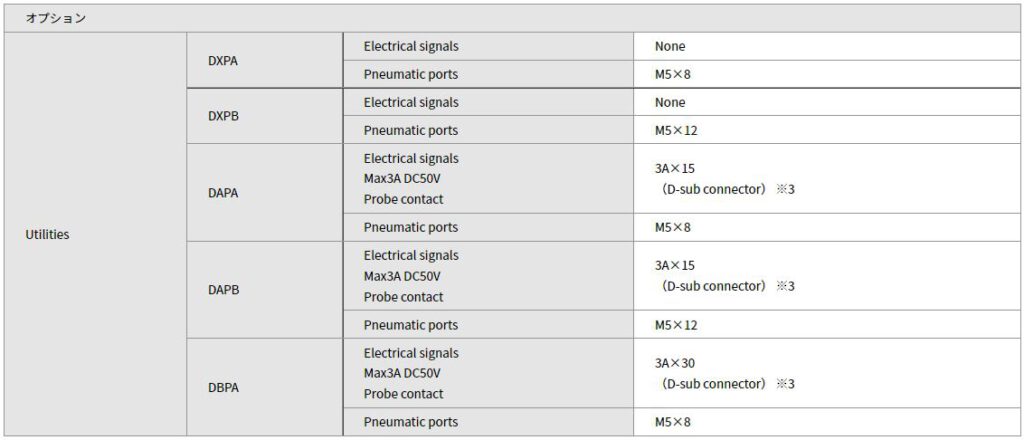

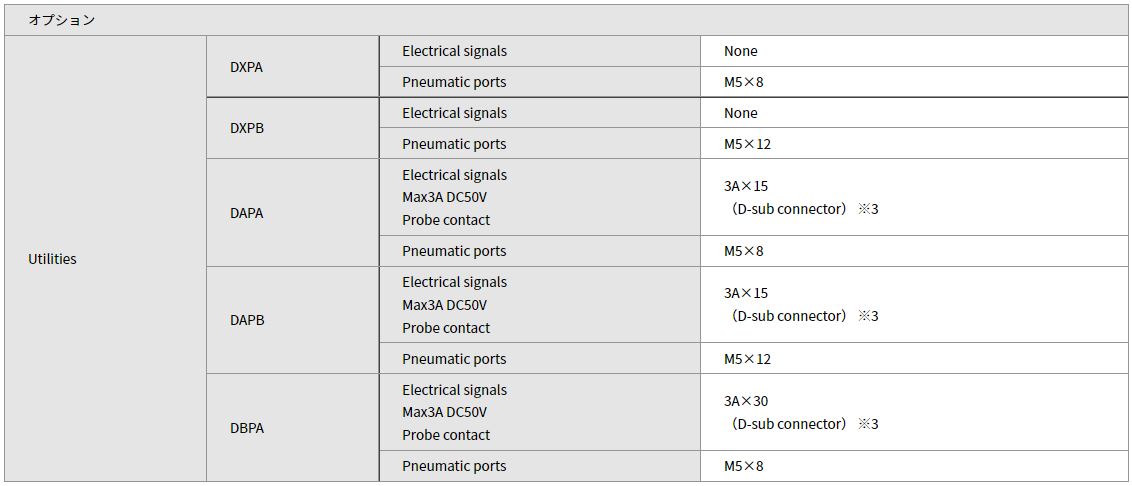

Types

  • No electrical signal

Load capacity：20kg(196N)QC-20D-M(T)-DXPA

Load capacity：20kg(196N)QC-20D-M(T)-DXPB



  • Electrical signals

Load capacity：20kg(196N)QC-20D-M(T)-DAPA

Load capacity：20kg(196N)QC-20D-M(T)-DAPB

Load capacity：20kg(196N)QC-20D-M(T)-DBPA

Option

  • Electrical signal contact block

Load capacity：20kg(196N)QC-20D-M(T)-D15N
