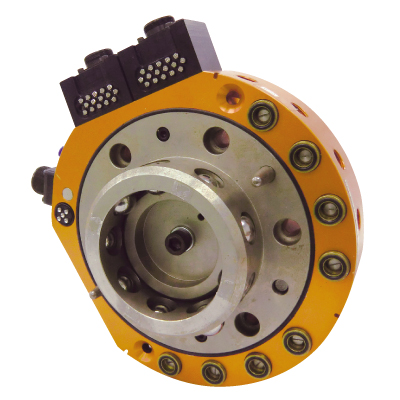

QUICK-CHANGE FLEX-300A

The BL QUICK-CHANGE Model Flex-300A is a device for automatic tool changing, specially designed for high payload capacity robots generally used in handling and palletizing. Optional electrical contacts or pneumatic ports can be selected for the Flex-300A.

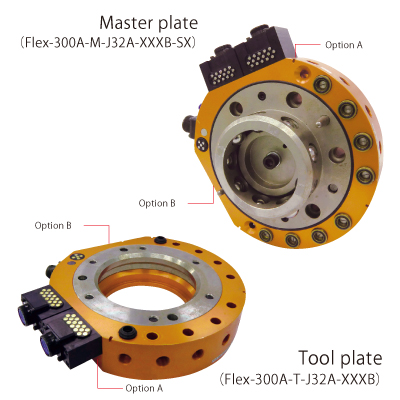

Master plate Attachments

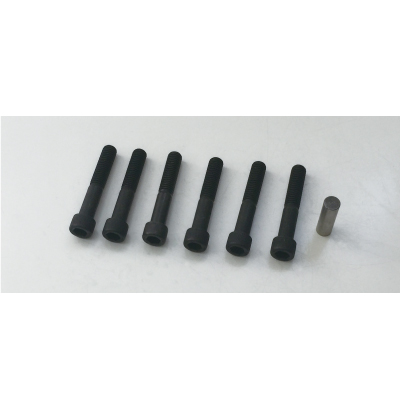

・6 bolts(M12×70)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Request more information

Catalog download

Features of Flex-300A



  • Heavy duty applications

For heavy duty applications, a special seal prevents dust from entering the locking mechanism and electrical contacts when the two plates are coupled. (Load Capacity: 300kg/Allowable static moment (Tx, Ty) :270kgf・m)



  • Self-sealing pneumatic ports

There are ten pneumatic ports in the Master plate (Rc3/8). Eight of the ten ports are self-sealing, which automatically shut off air pressure when uncoupled and allow for easier air control in the system.



  • Large misalignment correction capability

The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.



  • Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

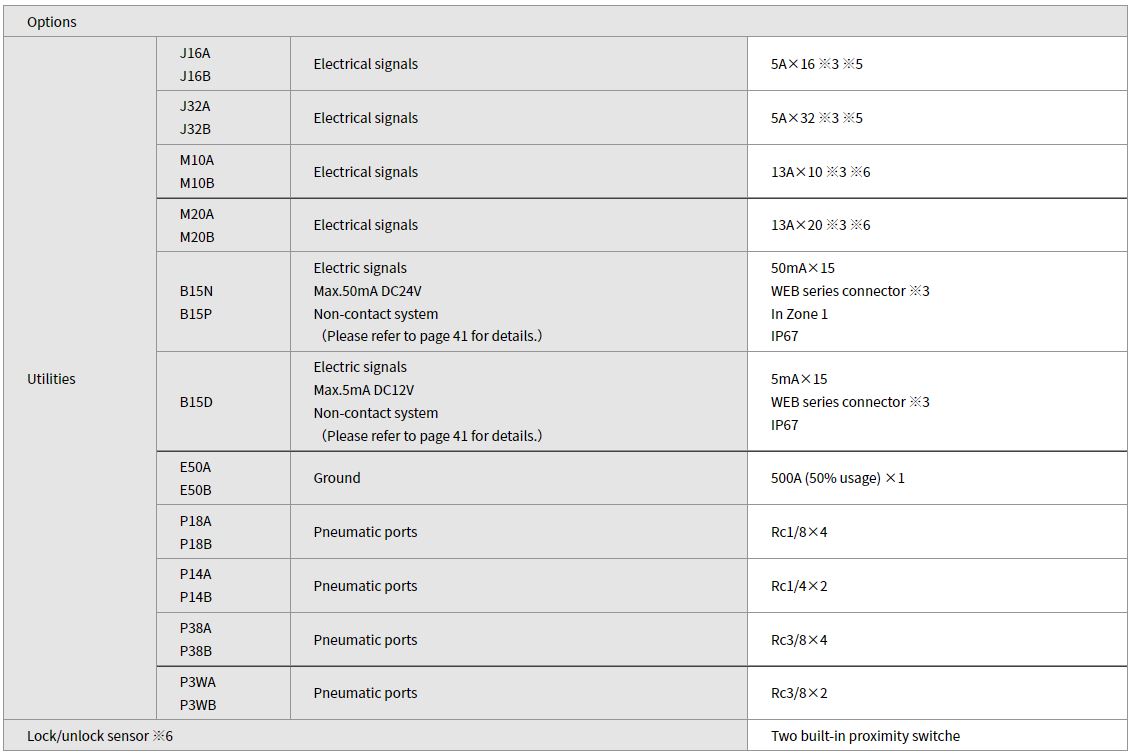

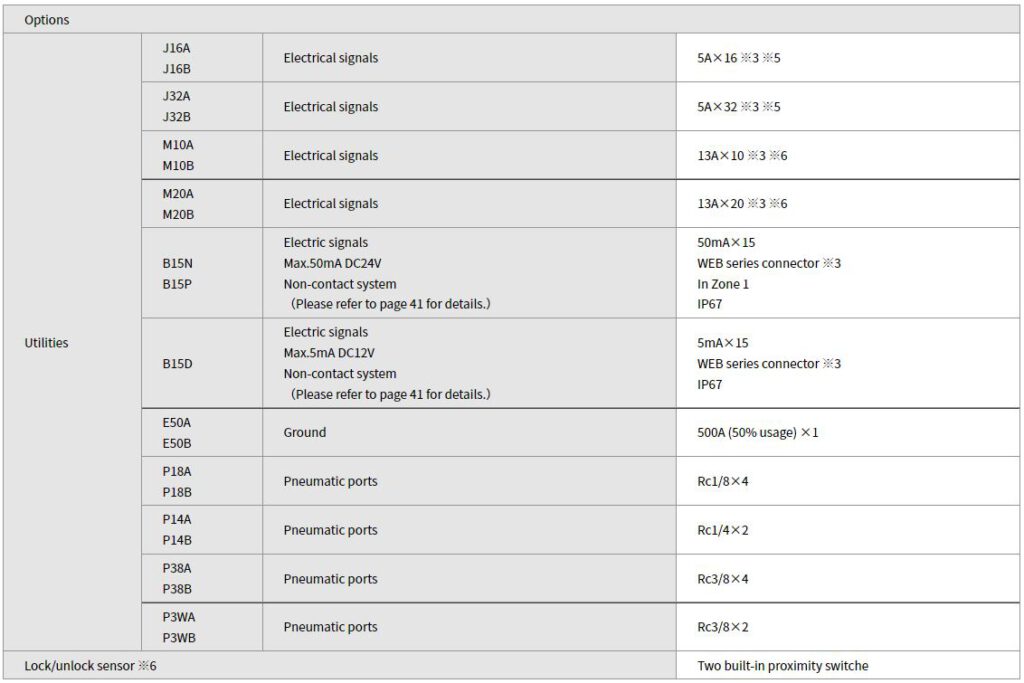

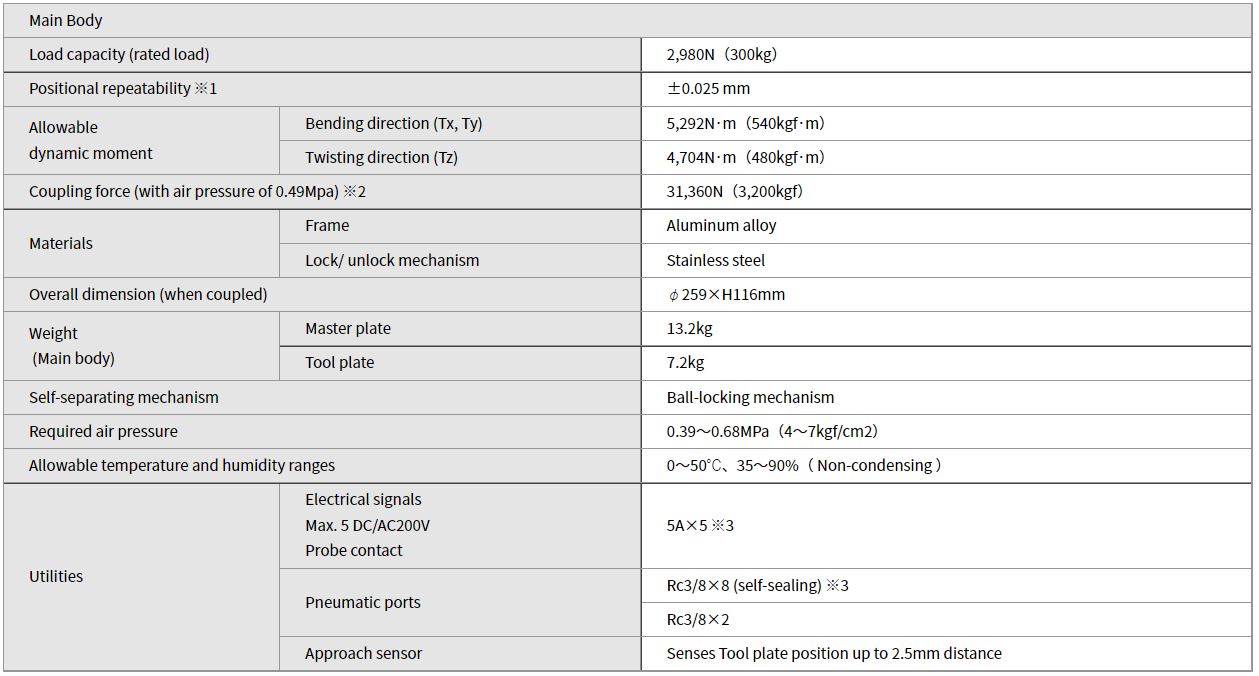

Specifications

Option

Electrical signal contact block

  • Load capacity:300kg(2,940N)Flex-300A-M(T)-J16A,J16B

  • Load capacity300kg(2,940N)Flex-300A-M(T)-J32A,J32B

  • Load capacity:300kg(2,940N)Flex-300-M(T)-M10A,M10B

  • Load capacity:300kg(2,940N)Flex-300A-M(T)-M20A,M20B



Non-contact electric signal block


Load capacity:300kg(2,940N)Flex-300A-M(T)-B15NA_B,B15PA_BMaster side only),B15DA_B(Tool side only)
Ground


Load capacity300kg(2,940N)Flex-300A-M(T)-E50A,E50B



Pneumatic ports




  • Load capacity300kg(2,940N)Flex-300A-M(T)-P18A,P18B

  • Load capacity:300kg(2,940N)Flex-300A-M(T)-P18A,P18B



  • Load capacity:300kg(2,940N)Flex-300A-M(T)-P38A,P38B



  • Load capacity:300kg(2,940N)Flex-300A-M(T)-P3WA,P3WB

Lock/unlock sensor


  • Load capacity:300kg(2,940N)Flex-300A-M(T)-SA,SB
